STM32L4S9VIT6
| Do pobrania | Download |
|---|---|

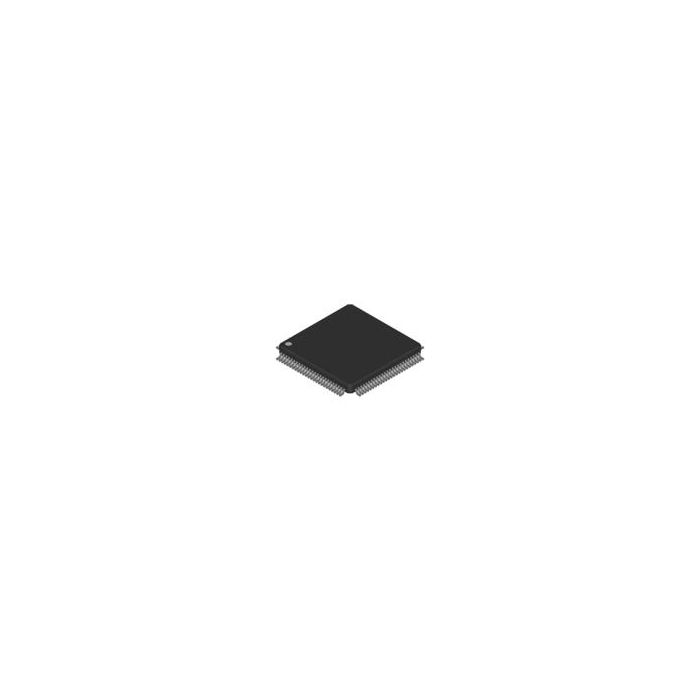

| Main description | MCU 32-bit ARM Cortex M4 RISC 2MB Flash 3.3V 100-Pin LQFP Tray |
MCU 32-bit ARM Cortex M4 RISC 2MB Flash 3.3V 100-Pin LQFP Tray
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1410
- Inventory 1
- PCNs 14
- MaskPart STM32L4S9VIT6%
Parametry
- ADC Channels 14
- ADC Resolution (bit) 12
- CAN 1
- Core Architecture ARM
- DAC Channels 2
- DAC Resolution (bit) 12
- Data Bus Width (bit) 32
- Device Core ARM Cortex M4
- Ethernet 0
- Family Name STM32L
- I2C 4
- I2S 0
- Instruction Set Architecture RISC
- Interface Type CAN/I2C/SPI/UART/USART/USB
- Maximum CPU Frequency (MHz) 120
- Maximum Clock Rate (MHz) 120
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) N/A
- Number of ADCs Single
- Number of DACs Single
- Number of Programmable I/Os 77
- Number of Timers 14
- Program Memory Size 2MB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 768KB
- SPI 3
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- UART 2
- USART 3
- USB 1
