STM32F750V8T6
| Do pobrania | Download |
|---|---|

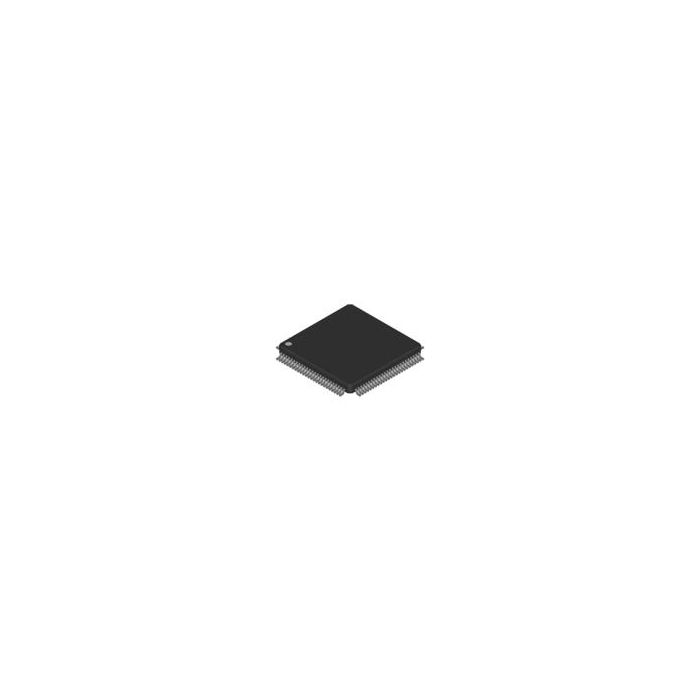

| Main description | MCU 32-bit ARM Cortex M7 RISC 64KB Flash 1.8V/2.5V/3.3V 100-Pin LQFP Tray |
MCU 32-bit ARM Cortex M7 RISC 64KB Flash 1.8V/2.5V/3.3V 100-Pin LQFP Tray
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1339
- Inventory 4
- PCNs 11
- MaskPart STM32F750V8T6%
- IntroductionDate Jun 27, 2018
Parametry
- ADC Channels 16/16/16
- ADC Resolution (bit) 12/12/12
- CAN 2
- Core Architecture ARM
- DAC Channels 2
- DAC Resolution (bit) 12
- Data Bus Width (bit) 32
- Device Core ARM Cortex M7
- Ethernet 1
- Family Name STM32F
- I2C 4
- I2S 3
- Instruction Set Architecture RISC
- Interface Type CAN/Ethernet/I2C/I2S/SPI/UART/USART/USB
- Maximum CPU Frequency (MHz) 216
- Maximum Clock Rate (MHz) 216
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) 465
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Triple
- Number of DACs Single
- Number of Programmable I/Os 82
- Number of Timers 15
- Program Memory Size 64KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 340KB
- SPI 4
- Special Features CAN Controller
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- UART 4
- USART 4
- USB 2
