STM32F412VET6TR
| Do pobrania | Download |
|---|---|

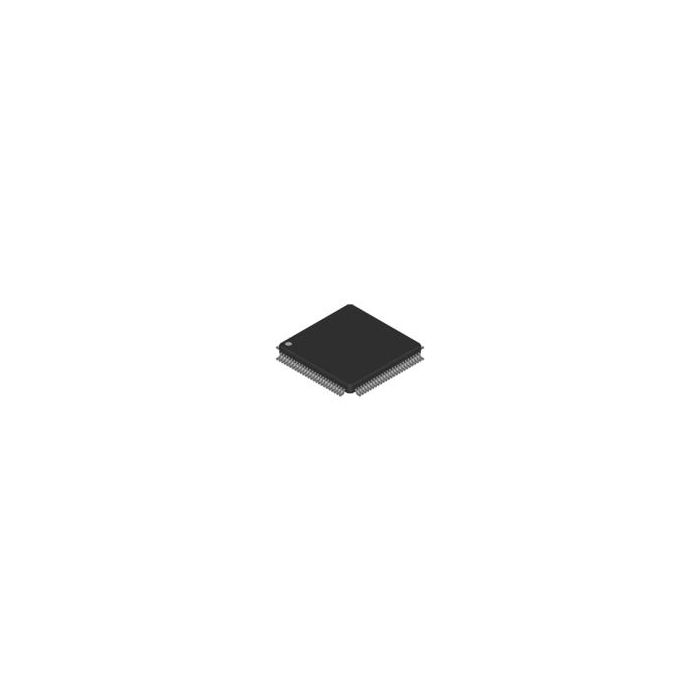

| Main description | MCU 32-bit ARM Cortex M4 RISC 512KB Flash 3.3V 100-Pin LQFP T/R |
MCU 32-bit ARM Cortex M4 RISC 512KB Flash 3.3V 100-Pin LQFP T/R
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1419
- Inventory 4
- PCNs 12
- MaskPart STM32F412VET6%
Parametry
- ADC Channels 16
- ADC Resolution (bit) 12
- Analog Comparators N/A
- CAN 2
- Core Architecture ARM
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 32
- Data Memory Size N/A
- Device Core ARM Cortex M4
- Display Driver N/A
- Ethernet 0
- Ethernet Interface Type N/A
- Ethernet Speed N/A
- Family Name STM32F
- I2C 3
- I2S 5
- ISM Band N/A
- Instruction Set Architecture RISC
- Interface Type CAN/I2C/I2S/SPI/USART/USB
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 100
- Maximum Clock Rate (MHz) 100
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) 465
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Single
- Number of DACs N/A
- Number of Programmable I/Os 81
- Number of Timers 14
- PWM 4
- Parallel Master Port No
- Process Technology N/A
- Program Memory Size 512KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 256KB
- Real Time Clock Yes
- SPI 5
- Solutions N/A
- Special Features CAN Controller
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- Timers Channels N/A
- Timers Resolution (bit) N/A
- UART 0
- USART 4
- USB 1
- Watchdog 2
