STM32F405VGT7
| Do pobrania | Download |
|---|---|
| Main description | MCU 32-bit ARM Cortex M4 RISC 1MB Flash 2.5V/3.3V 100-Pin LQFP Tray |

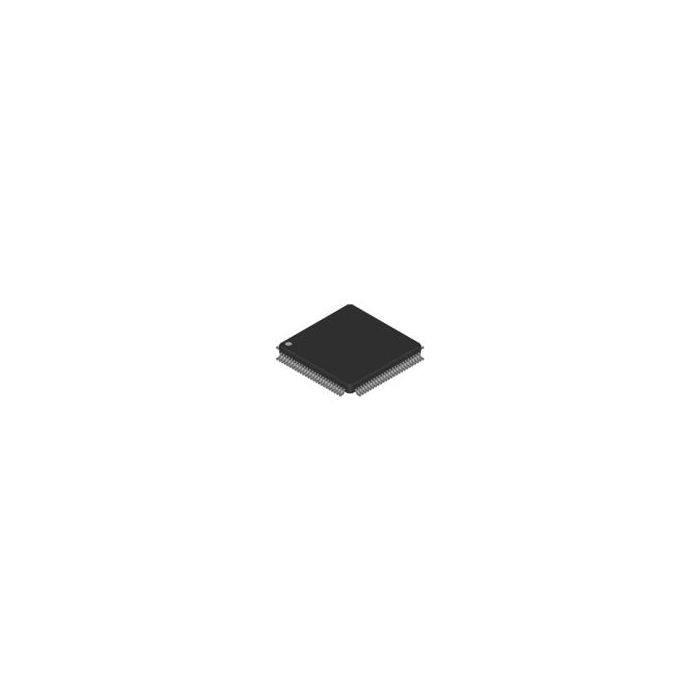

MCU 32-bit ARM Cortex M4 RISC 1MB Flash 2.5V/3.3V 100-Pin LQFP Tray
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1746
- Inventory 4
- PCNs 17
- MaskPart STM32F405VGT7%
Parametry
- ADC Channels 16/16/16
- ADC Resolution (bit) 12/12/12
- Analog Comparators N/A
- CAN 2
- Core Architecture ARM
- DAC Channels 2
- DAC Resolution (bit) 12
- Data Bus Width (bit) 32
- Data Memory Size N/A
- Device Core ARM Cortex M4
- Display Driver N/A
- Ethernet 0
- Family Name STM32F
- I2C 3
- I2S 2
- Instruction Set Architecture RISC
- Interface Type CAN/I2C/I2S/SPI/UART/USART/USB
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 168
- Maximum Clock Rate (MHz) 168
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Memory Management Unit No
- Memory Protection Unit Yes
- Minimum Storage Temperature (°C) -65
- Multiply Accumulate No
- Number of ADCs Triple
- Number of DACs Single
- Number of Programmable I/Os 82
- Number of Timers 14
- PWM 2
- Parallel Master Port No
- Power On Reset No
- Program Memory Size 1MB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 196KB
- Real Time Clock Yes
- SPI 3
- Solutions N/A
- Special Features CAN Controller
- Super Scalar No
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- Temperature Sensor Yes
- Timers Channels N/A
- Timers Resolution (bit) N/A
- Touch Sensing Interface No
- Trace Hardware N/A
- UART 2
- USART 4
- USB 2
- Watchdog 2
- Wi-Fi No
