STM32F098VCH6TR
| Do pobrania | Download |
|---|---|

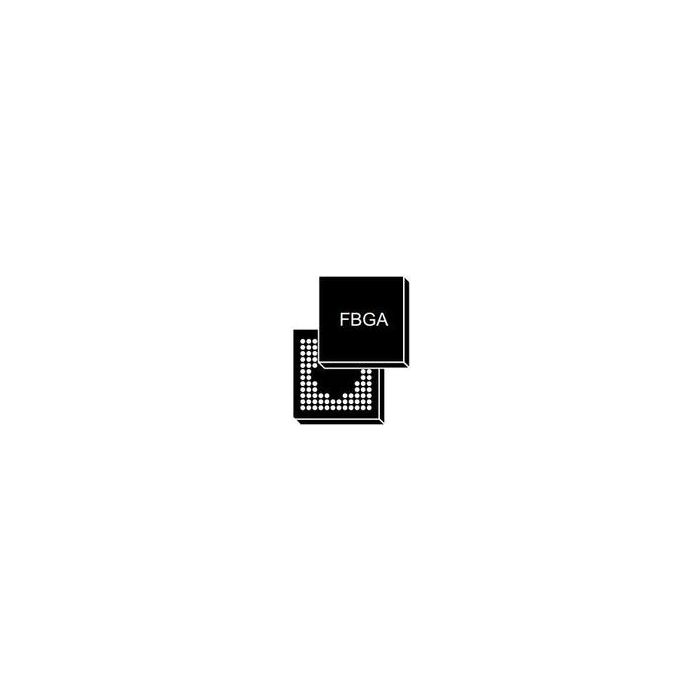

| Main description | MCU 32-bit ARM Cortex M0 RISC 256KB Flash 2.5V/3.3V 100-Pin UFBGA T/R |
MCU 32-bit ARM Cortex M0 RISC 256KB Flash 2.5V/3.3V 100-Pin UFBGA T/R
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 257
- PCNs 10
- MaskPart STM32F098VCH6%
Parametry
- ADC Channels 19
- ADC Resolution (bit) 12
- Analog Comparators 2
- Bluetooth No
- CAN 1
- CAN Type N/A
- Core Architecture ARM
- DAC Channels 2
- DAC Resolution (bit) 12
- DDR No
- DMA Channels 12
- Data Bus Width (bit) 32
- Data Cache Size N/A
- Data Memory Size N/A
- Device Core ARM Cortex M0
- Direct Memory Access Yes
- Display Driver N/A
- EEPROM N/A
- Encryption Standard N/A
- Ethernet 0
- External Bus Interface No
- Family Name STM32F
- Floating Point Unit No
- Hardware Acceleration N/A
- I2C 2
- I2S 2
- ISM Band N/A
- Instruction Set Architecture RISC
- Integrated Development Environment No
- Interface Type CAN/I2C/I2S/SPI/USART
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 48
- Maximum Clock Rate (MHz) 48
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) 364
- Maximum Storage Temperature (°C) 150
- Memory Management Unit No
- Memory Protection Unit No
- Minimum Storage Temperature (°C) -65
- Multiply Accumulate No
- Number of ADCs Single
- Number of DACs Single
- Number of Programmable I/Os 87
- Number of Timers 9
- Output Compare Channels N/A
- PWM 1
- Parallel Master Port No
- Power On Reset No
- Program Memory Size 256KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 32KB
- Real Time Clock Yes
- SPI 2
- Solutions N/A
- Special Features CAN Controller
- Super Scalar No
- Supplier Temperature Grade N/A
- Temperature Flag Opr
- Temperature Sensor Yes
- Timers Channels N/A
- Timers Resolution (bit) N/A
- Touch Sensing Interface No
- UART 0
- USART 8
- USB 0
- Watchdog 2
- Wi-Fi No
