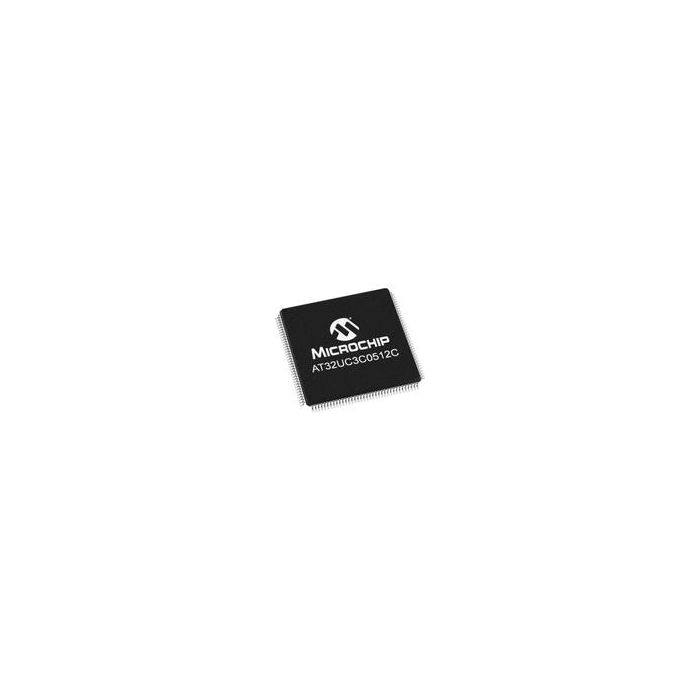

AT32UC3C0512C-ALZR
| Do pobrania | Download |
|---|---|
| Main description | MCU 32-bit AVR RISC 512KB Flash 3.3V/5V Automotive 144-Pin LQFP T/R |
MCU 32-bit AVR RISC 512KB Flash 3.3V/5V Automotive 144-Pin LQFP T/R
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 467
- Inventory 3
- PCNs 48
- GIDEP-Alerts 1
- MaskPart AT32UC3C0512CALZ%
- IntroductionDate Nov 05, 2010
Parametry
- ADC Channels 16
- ADC Resolution (bit) 12
- Analog Comparators 4
- Bluetooth No
- CAN 2
- CAN Type 2.0A/2.0B
- Core Architecture AVR
- DAC Channels 4
- DAC Resolution (bit) 12
- DDR No
- DMA Channels 16
- Data Bus Width (bit) 32
- Data Memory Size N/A
- Device Core AVR
- Direct Memory Access Yes
- Display Driver N/A
- Ethernet 1
- Ethernet Interface Type MII/RMII
- Ethernet Speed 10Mbps/100Mbps
- Family Name AT32
- I2C 3
- I2S 1
- ISM Band N/A
- Instruction Set Architecture RISC
- Interface Type CAN/Ethernet/I2C/I2S/SPI/USART/USB
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 66
- Maximum Clock Rate (MHz) 66
- Maximum Expanded Memory Size 64MB
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -60
- Number of ADCs Single
- Number of DACs Single
- Number of Programmable I/Os 123
- Number of Timers 3
- PWM 8
- Program Memory Size 512KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 68KB
- Real Time Clock Yes
- SPI 2
- Solutions N/A
- Special Features CAN Controller
- Supplier Temperature Grade Automotive
- Temperature Flag Opr
- Timers Channels N/A
- Timers Resolution (bit) N/A
- UART 0
- USART 5
- USB 1
- Watchdog 1
- Wi-Fi No
