XC9536-15PCG44C
| Do pobrania | Download |
|---|---|

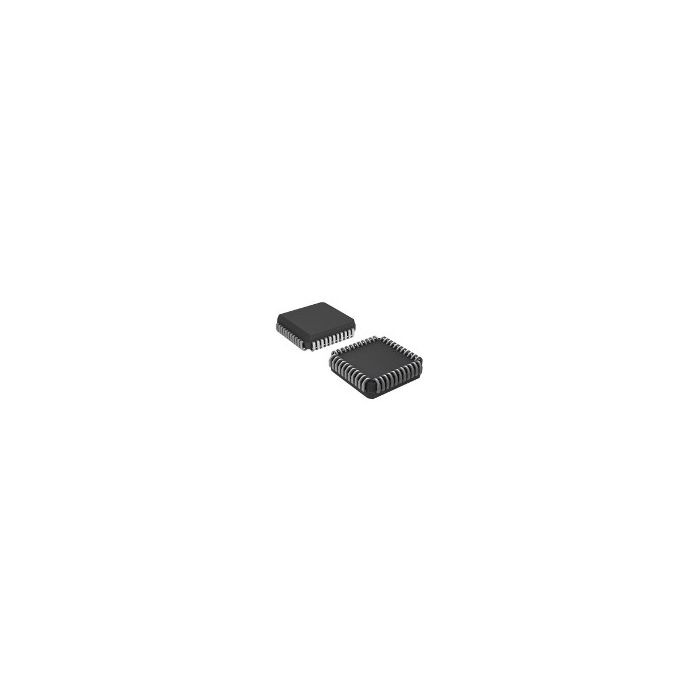

| Main description | CPLD XC9500 Family 800 Gates 36 Macro Cells 55.6MHz 0.5um Technology 5V 44-Pin PLCC |
CPLD XC9500 Family 800 Gates 36 Macro Cells 55.6MHz 0.5um Technology 5V 44-Pin PLCC
Informacje podstawowe
- ProducentXilinx
- EURoHSYes (2011/65/EU)
- Automotive Unknown
Informacje dodatkowe
- Crosses 2
- Inventory 2
- PCNs 17
- MaskPart XC953615PCG44C%
- IntroductionDate May 01, 1996
Parametry
- Clock Management N/A
- Copy Protection Yes
- Data Gate No
- Device Logic Cells N/A
- Device System Gates 800
- Family Name XC9500
- I/O Voltage (V) 3.3|5
- In-System Programmability Yes
- Individual Output Enable Control Yes
- Maximum Clock to Output Delay (ns) 8
- Maximum Internal Frequency (MHz) 95.2
- Maximum Propagation Delay Time (ns) 15
- Maximum Storage Temperature (°C) 150
- Memory Size (Kbit) N/A
- Minimum Storage Temperature (°C) -65
- Number of Flip Flops 36
- Number of Global Clocks 3
- Number of I/O Banks N/A
- Number of Inter Dielectric Layers 3
- Number of Logic Blocks/Elements 8
- Number of Macro Cells 36
- Number of Product Terms per Macro 90
- Number of User I/Os 34
- Process Technology 0.5um
- Program Memory Type Flash
- Programmability Yes
- Programmable Type In System Programmable
- RAM Bits (Kbit) N/A
- Reprogrammability Support No
- Speed Grade 15
- Supplier Temperature Grade Commercial
- Temperature Flag Opr
- Tolerant Configuration Interface Voltage (V) N/A
- Tradename XC9500
