XC7A200T-1SBG484C

ProducentXilinxEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
XC7A200T-1SBG484C_XILINX
0,00 zł

Zapytaj o ten produkt

Opis / XC7A200T-1SBG484C

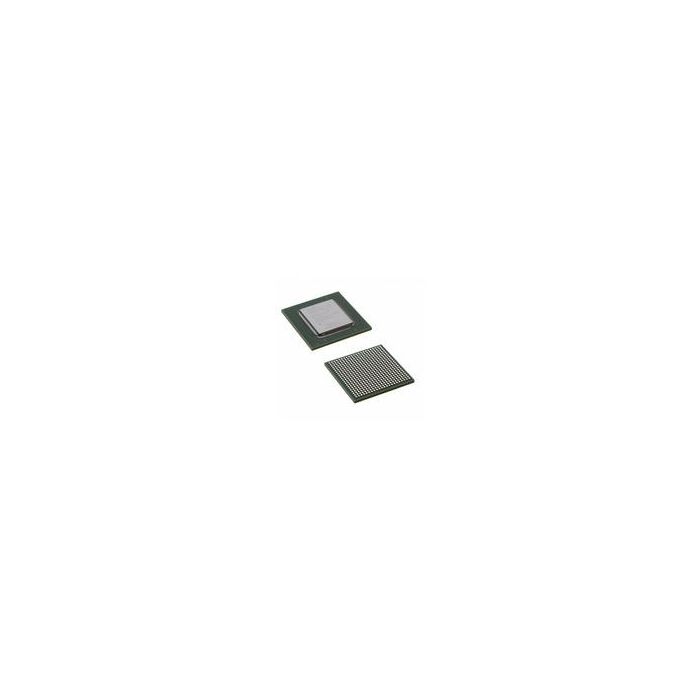

FPGA Artix-7 Family 215360 Cells 28nm Technology 1V 484-Pin Lidless FCBGA Tray

Informacje podstawowe

  • ProducentXilinx
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 420
  • Inventory 2
  • PCNs 13
  • MaskPart XC7A200T1SBG484C%
  • IntroductionDate Sep 21, 2016

Parametry

  • Copy Protection Yes
  • Dedicated DSP 740
  • Device Logic Cells 215360
  • Device Logic Gates N/A
  • Device Logic Units 215360
  • Device Number of DLLs/PLLs 10
  • Device PCIe Hard IP Blocks N/A
  • Device System Gates N/A
  • Digital Control Impedance No
  • Ethernet MACs N/A
  • External Memory Interface N/A
  • Family Name Artix-7
  • Giga Multiply Accumulates per Second N/A
  • I/O Voltage (V) 1.2|1.35|1.5|1.8|2.5|3.3
  • In-System Programmability Yes
  • Maximum DSP Block Frequency (MHz) N/A
  • Maximum Differential I/O Pairs N/A
  • Maximum Distributed RAM Bits 2957312
  • Maximum I/O Performance 6.6Gbps
  • Maximum Internal Frequency (MHz) N/A
  • Maximum LVDS Data Rate (Mbps) N/A
  • Maximum MLAB Capacity (Kbit) N/A
  • Maximum Number of SERDES Channels N/A
  • Maximum Number of User I/Os 285
  • Maximum Operating Supply Voltage (V) 1.05
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time (ns) N/A
  • Maximum Storage Temperature (°C) 150
  • Mega Multiply Accumulates per second N/A
  • Minimum Operating Supply Voltage (V) 0.95
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -65
  • Number of Global Clocks 32
  • Number of I/O Banks 10
  • Number of Inter Dielectric Layers N/A
  • Number of Look-up Table Input N/A
  • Number of Multipliers 740 (25x18)
  • Number of Regional Clocks 4
  • Number of Registers 269200
  • PCI Blocks 1
  • Process Technology 28nm
  • Processor Blocks N/A
  • Program Memory Type SRAM
  • Programmability Yes
  • RAM Bits (Kbit) 13140
  • Reprogrammability Support Yes
  • Shift Registers Utilize LUT
  • Speed Grade 1
  • Supplier Temperature Grade Commercial
  • Supported IP Core N/A
  • Supported IP Core Manufacture N/A
  • Temperature Flag Jun
  • Tolerant Configuration Interface Voltage (V) N/A
  • Total Number of Block RAM 365
  • Tradename Artix
  • Transceiver Blocks 16
  • Transceiver Speed (Gbps) 6.6
  • Typical Operating Supply Voltage (V) 1
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description FPGA Artix-7 Family 215360 Cells 28nm Technology 1V 484-Pin Lidless FCBGA Tray
