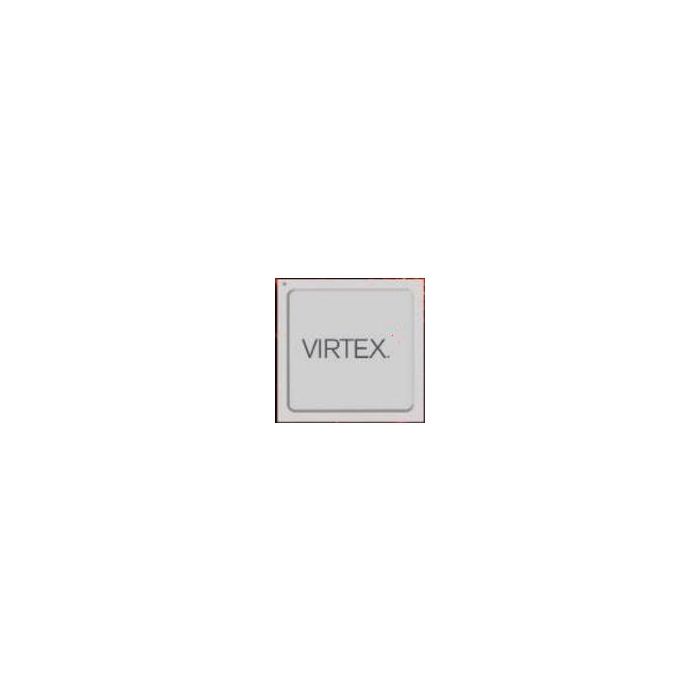

XC6VHX565T-2FFG1923E
ProducentXilinxEURoHSYes with Exemption (2011/65/EU)Automotive No.
- SKU
- XC6VHX565T-2FFG1923E_XILINX
0,00 zł
Opis / XC6VHX565T-2FFG1923E
FPGA Virtex®-6 HXT Family 566784 Cells 40nm Technology 1V 1923-Pin FCBGA
Informacje podstawowe
- ProducentXilinx
- EURoHSYes with Exemption (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 2
- PCNs 9
- MaskPart XC6VHX565T2FFG1923E%
Parametry
- Copy Protection Yes
- Dedicated DSP 864
- Device Logic Cells 566784
- Device Logic Gates N/A
- Device Logic Units 566784
- Device Number of DLLs/PLLs N/A
- Device System Gates N/A
- Digital Control Impedance Yes
- Ethernet MACs 4
- Family Name Virtex®-6 HXT
- Giga Multiply Accumulates per Second N/A
- I/O Voltage (V) 1.2|1.5|1.8|2.5
- In-System Programmability No
- Maximum Differential I/O Pairs N/A
- Maximum Distributed RAM Bits 6522880
- Maximum I/O Performance N/A
- Maximum Internal Frequency (MHz) N/A
- Maximum Number of SERDES Channels N/A
- Maximum Number of User I/Os 720
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time (ns) N/A
- Maximum Storage Temperature (°C) 150
- Mega Multiply Accumulates per second N/A
- Minimum Storage Temperature (°C) -65
- Number of Global Clocks 32
- Number of I/O Banks 18
- Number of Inter Dielectric Layers N/A
- Number of Multipliers 864 (25x18)
- Number of Registers N/A
- PCI Blocks 4
- Process Technology 40nm
- Processor Blocks N/A
- Program Memory Type SRAM
- Programmability Yes
- RAM Bits (Kbit) 32832
- Reprogrammability Support No
- Shift Registers Utilize LUT
- Speed Grade 2
- Supplier Temperature Grade Extended
- Temperature Flag Jun
- Tolerant Configuration Interface Voltage (V) N/A
- Total Number of Block RAM 912
- Tradename Virtex
- Transceiver Blocks 48
- Transceiver Speed (Gbps) 6.6
- Typical Supply Current (mA) N/A
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | FPGA Virtex®-6 HXT Family 566784 Cells 40nm Technology 1V 1923-Pin FCBGA |
