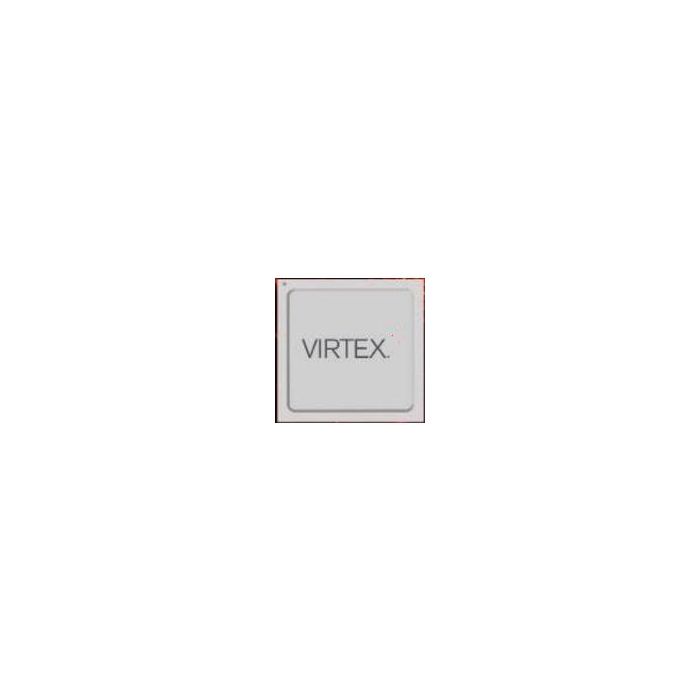

XC6VHX380T-2FFG1924E

ProducentXilinxEURoHSYes with Exemption (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
XC6VHX380T-2FFG1924E_XILINX
0,00 zł

Zapytaj o ten produkt

Opis / XC6VHX380T-2FFG1924E

FPGA Virtex®-6 HXT Family 382464 Cells 40nm Technology 1V 1924-Pin FCBGA

Informacje podstawowe

  • ProducentXilinx
  • EURoHSYes with Exemption (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 3
  • PCNs 15
  • MaskPart XC6VHX380T2FFG1924E%
  • IntroductionDate Jun 24, 2009
  • EnablingEnergyEfficiency Yes
  • Sourceofinformation_EE http://download.siliconexpert.com/pdfs/2010/8/12/19/45/38/781/xil_/auto/qar-case-studies.pdf

Parametry

  • Copy Protection Yes
  • Dedicated DSP 864
  • Device Logic Cells 382464
  • Device Logic Gates N/A
  • Device Logic Units 382464
  • Device Number of DLLs/PLLs N/A
  • Device System Gates N/A
  • Digital Control Impedance Yes
  • Ethernet MACs 4
  • Family Name Virtex®-6 HXT
  • Giga Multiply Accumulates per Second N/A
  • I/O Voltage (V) 1.2|1.5|1.8|2.5
  • In-System Programmability No
  • Maximum Differential I/O Pairs N/A
  • Maximum Distributed RAM Bits 4679680
  • Maximum I/O Performance N/A
  • Maximum Internal Frequency (MHz) N/A
  • Maximum Number of SERDES Channels N/A
  • Maximum Number of User I/Os 640
  • Maximum Operating Supply Voltage (V) 1.05
  • Maximum Operating Temperature (°C) 100
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time (ns) N/A
  • Maximum Storage Temperature (°C) 150
  • Mega Multiply Accumulates per second N/A
  • Minimum Operating Supply Voltage (V) 0.95
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -65
  • Number of Global Clocks 32
  • Number of I/O Banks 18
  • Number of Inter Dielectric Layers N/A
  • Number of Multipliers 864 (25x18)
  • Number of Registers N/A
  • PCI Blocks 4
  • Process Technology 40nm
  • Processor Blocks N/A
  • Program Memory Type SRAM
  • Programmability Yes
  • RAM Bits (Kbit) 27648
  • Reprogrammability Support No
  • Shift Registers Utilize LUT
  • Speed Grade 2
  • Supplier Temperature Grade Extended
  • Temperature Flag Jun
  • Tolerant Configuration Interface Voltage (V) N/A
  • Total Number of Block RAM 768
  • Tradename Virtex
  • Transceiver Blocks 48
  • Transceiver Speed (Gbps) 6.6
  • Typical Operating Supply Voltage (V) 1
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description FPGA Virtex®-6 HXT Family 382464 Cells 40nm Technology 1V 1924-Pin FCBGA
