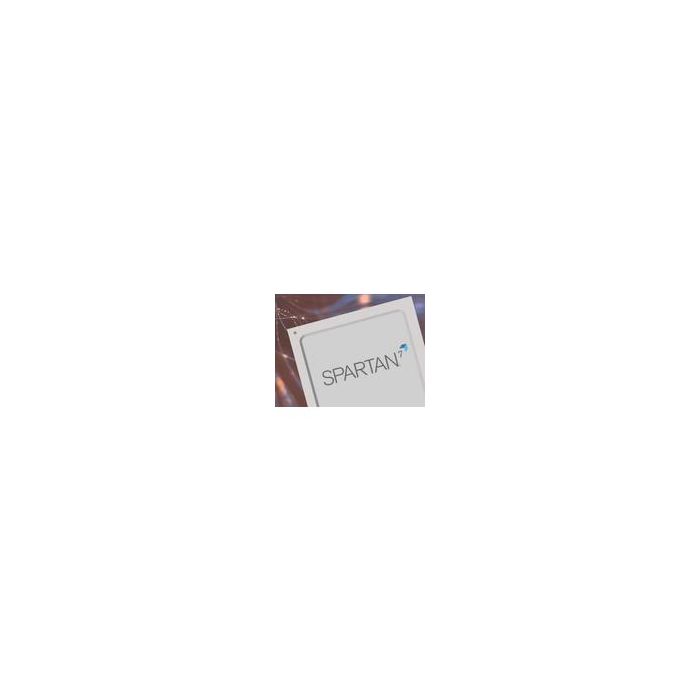

XC6SLX75T-3FGG676I

ProducentXilinxEURoHSYes (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
XC6SLX75T-3FGG676I_XILINX
0,00 zł

Zapytaj o ten produkt

Opis / XC6SLX75T-3FGG676I

FPGA Spartan®-6 LXT Family 74637 Cells 45nm Technology 1.2V 676-Pin FBGA

Informacje podstawowe

  • ProducentXilinx
  • EURoHSYes (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 133
  • Inventory 1
  • PCNs 27
  • MaskPart XC6SLX75T3FGG676I%
  • IntroductionDate Jun 24, 2009
  • EnablingEnergyEfficiency Yes
  • Sourceofinformation_EE http://download.siliconexpert.com/pdfs/2010/8/12/19/45/38/781/xil_/auto/qar-case-studies.pdf

Parametry

  • Copy Protection Yes
  • Dedicated DSP 132
  • Device Logic Cells 74637
  • Device Logic Gates N/A
  • Device Logic Units 74637
  • Device Number of DLLs/PLLs 18
  • Device System Gates N/A
  • Digital Control Impedance No
  • Ethernet MACs N/A
  • Family Name Spartan®-6 LXT
  • Giga Multiply Accumulates per Second N/A
  • I/O Voltage (V) 1.8|2.5
  • In-System Programmability No
  • Maximum Differential I/O Pairs N/A
  • Maximum Distributed RAM Bits 708608
  • Maximum I/O Performance 3.125Gbps
  • Maximum Internal Frequency (MHz) N/A
  • Maximum Number of SERDES Channels N/A
  • Maximum Number of User I/Os 348
  • Maximum Operating Supply Voltage (V) 1.26
  • Maximum Operating Temperature (°C) 100
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time (ns) N/A
  • Maximum Storage Temperature (°C) 150
  • Mega Multiply Accumulates per second N/A
  • Minimum Operating Supply Voltage (V) 1.14
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Global Clocks 16
  • Number of I/O Banks 6
  • Number of Inter Dielectric Layers N/A
  • Number of Multipliers 264 (18x18)
  • Number of Registers 93296
  • PCI Blocks 1
  • Process Technology 45nm
  • Processor Blocks N/A
  • Program Memory Type SRAM
  • Programmability Yes
  • RAM Bits (Kbit) 3096
  • Reprogrammability Support Yes
  • Shift Registers Utilize LUT
  • Speed Grade 3
  • Supplier Temperature Grade Industrial
  • Temperature Flag Jun
  • Tolerant Configuration Interface Voltage (V) N/A
  • Total Number of Block RAM 172
  • Tradename Spartan
  • Transceiver Blocks 8
  • Transceiver Speed (Gbps) 3.2
  • Typical Operating Supply Voltage (V) 1.2
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description FPGA Spartan®-6 LXT Family 74637 Cells 45nm Technology 1.2V 676-Pin FBGA
