XC6SLX75-N3FG484C
ProducentXilinxEURoHSNo (2011/65/EU, 2015/863)Automotive No.
- SKU
- XC6SLX75-N3FG484C_XILINX
0,00 zł
Opis / XC6SLX75-N3FG484C

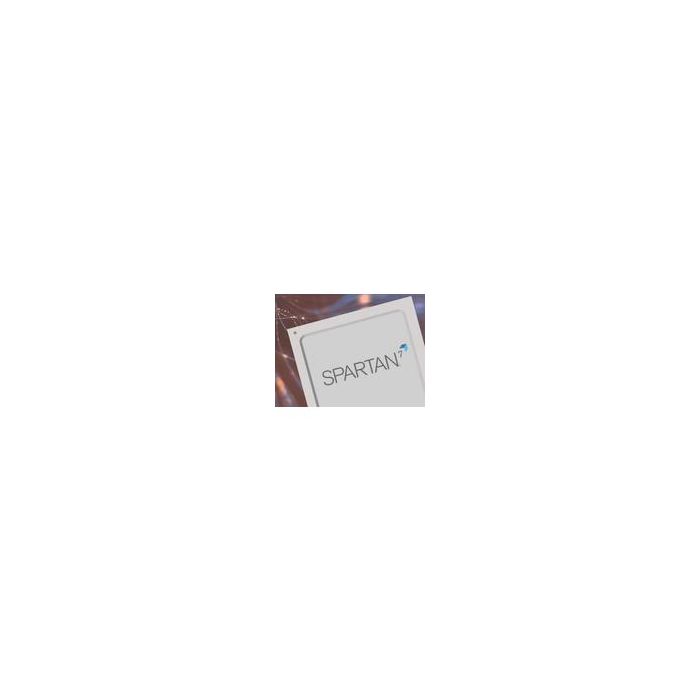

FPGA Spartan®-6 LX Family 74637 Cells 45nm Technology 1.2V 484-Pin FBGA
Informacje podstawowe
- ProducentXilinx
- EURoHSNo (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 2755
- PCNs 11
- MaskPart XC6SLX75N3FG484C%
- IntroductionDate Jun 30, 2008
Parametry
- Copy Protection Yes
- Dedicated DSP 132
- Device Logic Cells 74637
- Device Logic Gates N/A
- Device Logic Units 74637
- Device Number of DLLs/PLLs 18
- Device System Gates N/A
- Digital Control Impedance No
- Ethernet MACs N/A
- Family Name Spartan®-6 LX
- Giga Multiply Accumulates per Second N/A
- I/O Voltage (V) 1.8|2.5
- In-System Programmability No
- Maximum Differential I/O Pairs N/A
- Maximum Distributed RAM Bits 708608
- Maximum I/O Performance 3.125Gbps
- Maximum Internal Frequency (MHz) N/A
- Maximum Number of SERDES Channels N/A
- Maximum Number of User I/Os 280
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time (ns) N/A
- Maximum Storage Temperature (°C) 150
- Mega Multiply Accumulates per second N/A
- Minimum Storage Temperature (°C) -65
- Number of Global Clocks 16
- Number of I/O Banks 6
- Number of Inter Dielectric Layers N/A
- Number of Multipliers 264 (18x18)
- Number of Registers 93296
- PCI Blocks N/A
- Process Technology 45nm
- Processor Blocks N/A
- Program Memory Type SRAM
- Programmability Yes
- RAM Bits (Kbit) 3096
- Reprogrammability Support Yes
- Shift Registers Utilize LUT
- Speed Grade N3
- Supplier Temperature Grade Commercial
- Temperature Flag Jun
- Tolerant Configuration Interface Voltage (V) N/A
- Total Number of Block RAM 172
- Tradename Spartan
- Transceiver Blocks N/A
- Transceiver Speed (Gbps) 3.2
- Typical Supply Current (mA) N/A
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | FPGA Spartan®-6 LX Family 74637 Cells 45nm Technology 1.2V 484-Pin FBGA |
