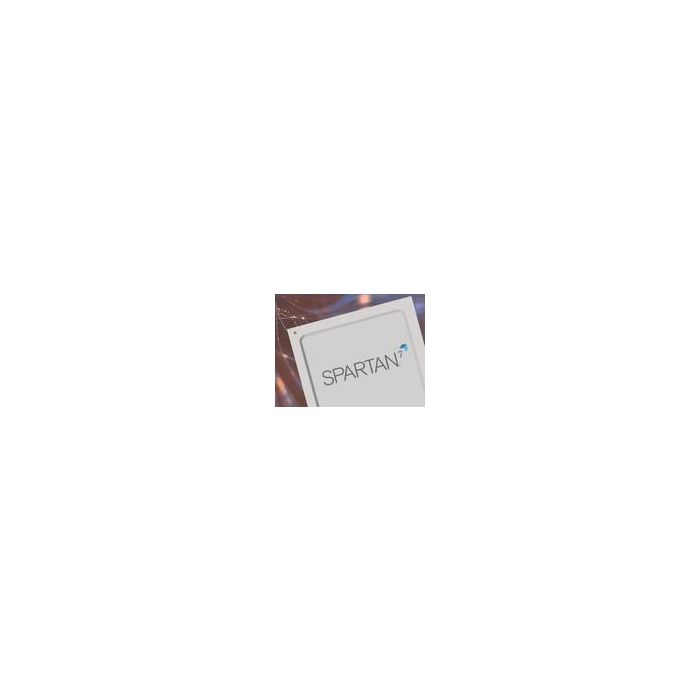

XC6SLX150-L1FG900C
| Do pobrania | Download |
|---|---|
| Main description | FPGA Spartan®-6 LX Family 147443 Cells 45nm Technology 1V 900-Pin FBGA |
FPGA Spartan®-6 LX Family 147443 Cells 45nm Technology 1V 900-Pin FBGA
Informacje podstawowe
- ProducentXilinx
- EURoHSNo (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 334
- PCNs 26
- MaskPart XC6SLX150L1FG900C%
- IntroductionDate Feb 02, 2009
- EnablingEnergyEfficiency Yes
- Sourceofinformation_EE http://download.siliconexpert.com/pdfs/2010/8/12/19/45/38/781/xil_/auto/qar-case-studies.pdf
Parametry
- Copy Protection Yes
- Dedicated DSP 180
- Device Logic Cells 147443
- Device Logic Gates N/A
- Device Logic Units 147443
- Device Number of DLLs/PLLs 18
- Device System Gates N/A
- Digital Control Impedance No
- Ethernet MACs N/A
- Family Name Spartan®-6 LX
- Giga Multiply Accumulates per Second N/A
- I/O Voltage (V) 1.8|2.5
- In-System Programmability No
- Maximum Differential I/O Pairs N/A
- Maximum Distributed RAM Bits 1387520
- Maximum I/O Performance 3.125Gbps
- Maximum Internal Frequency (MHz) N/A
- Maximum Number of SERDES Channels N/A
- Maximum Number of User I/Os 576
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time (ns) N/A
- Maximum Storage Temperature (°C) 150
- Mega Multiply Accumulates per second N/A
- Minimum Storage Temperature (°C) -65
- Number of Global Clocks 16
- Number of I/O Banks 6
- Number of Inter Dielectric Layers N/A
- Number of Multipliers 360 (18x18)
- Number of Registers 184304
- PCI Blocks N/A
- Process Technology 45nm
- Processor Blocks N/A
- Program Memory Type SRAM
- Programmability Yes
- RAM Bits (Kbit) 4824
- Reprogrammability Support Yes
- Shift Registers Utilize LUT
- Speed Grade 1L
- Supplier Temperature Grade Commercial
- Temperature Flag Jun
- Tolerant Configuration Interface Voltage (V) N/A
- Total Number of Block RAM 268
- Tradename Spartan
- Transceiver Blocks N/A
- Transceiver Speed (Gbps) 3.2
- Typical Supply Current (mA) N/A
