XC6D-6421

ProducentOmronEURoHSYes (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
XC6D-6421_OMRON
gender
SKT
0,00 zł

Zapytaj o ten produkt

Opis / XC6D-6421

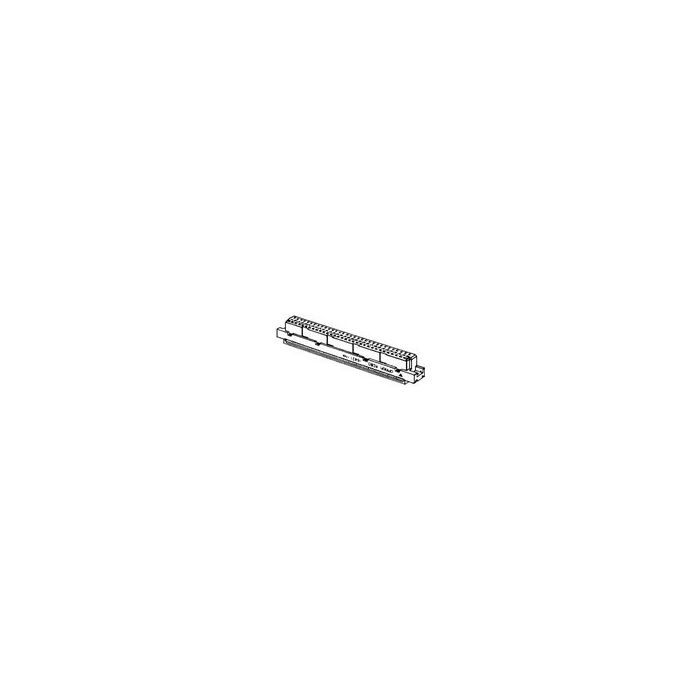

Conn DIN 41612 SKT 64 POS 2.54mm IDT RA Cable Mount

Informacje podstawowe

  • ProducentOmron
  • EURoHSYes (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 4
  • Inventory 3
  • PCNs 6
  • MaskPart XC6D6421%
  • IntroductionDate Jan 23, 2002
  • SupplierUrl http://components.omron.com/components/web/webfiles.nsf/(rohsSearch)?OpenAgent?ID=BEGINS&NAME=XC6D-6421

Parametry

  • Contact Material Phosphor Bronze
  • Contact Plating Gold Over Nickel
  • Gender SKT
  • Housing Color Gray
  • Housing Material Polybutylene Terephthalate
  • Insulation Resistance (MOhm) N/A
  • Mating Cycle (Cycles) N/A
  • Maximum Contact Resistance (mOhm) 20
  • Maximum Current Rating (A) 1
  • Maximum Operating Temperature (°C) 105
  • Maximum Voltage Rating 250VAC
  • Minimum Operating Temperature (°C) -55
  • Number of Contacts 64
  • Operating Temperature (°C) -55 to 105
  • Speed Rating (Gbps) N/A
  • Termination Method IDT
  • Type DIN 41612
  • VITA Standard N/A

Więcej informacji

Do pobrania Download
Main description Conn DIN 41612 SKT 64 POS 2.54mm IDT RA Cable Mount
