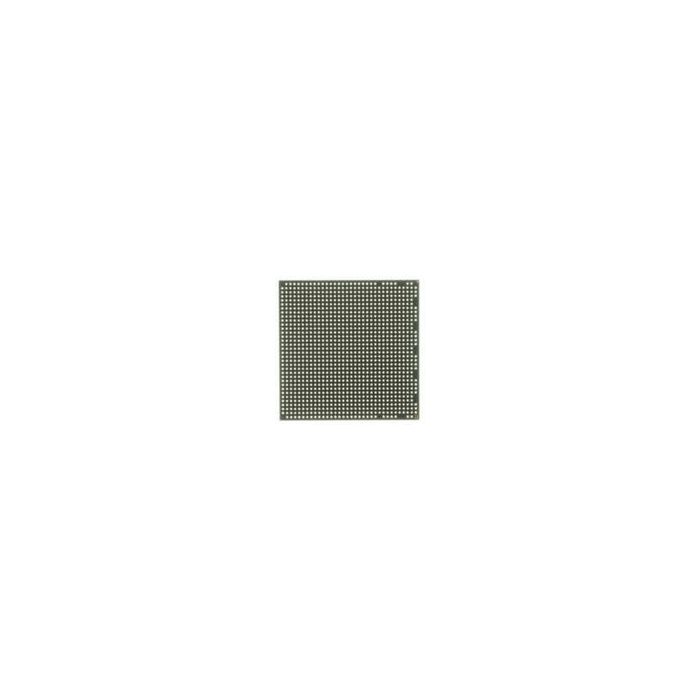

XC5VLX85T-2FFV1136C
ProducentXilinxEURoHSYes (2011/65/EU)Automotive No.
- SKU
- XC5VLX85T-2FFV1136C_XILINX
0,00 zł
Opis / XC5VLX85T-2FFV1136C
FPGA Virtex®-5 LXT Family 82944 Cells 65nm Technology 1V 1136-Pin FCBGA
Informacje podstawowe
- ProducentXilinx
- EURoHSYes (2011/65/EU)
- Automotive No
Informacje dodatkowe
- PCNs 8
- MaskPart XC5VLX85T2FFV1136C%
- IntroductionDate Jan 05, 1999
Parametry
- Copy Protection Yes
- Dedicated DSP 48
- Device Logic Cells 82944
- Device Logic Gates N/A
- Device Logic Units 82944
- Device Number of DLLs/PLLs 18
- Device System Gates N/A
- Digital Control Impedance Yes
- Ethernet MACs 4
- Family Name Virtex®-5 LXT
- Giga Multiply Accumulates per Second 26.4
- I/O Voltage (V) 1.5|1.8|2.5
- In-System Programmability No
- Maximum Differential I/O Pairs N/A
- Maximum Distributed RAM Bits 860160
- Maximum I/O Performance 1.25Gbps
- Maximum Internal Frequency (MHz) N/A
- Maximum Number of SERDES Channels N/A
- Maximum Number of User I/Os 480
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time (ns) N/A
- Mega Multiply Accumulates per second 26400
- Number of Global Clocks 32
- Number of I/O Banks 15
- Number of Inter Dielectric Layers 12
- Number of Multipliers 96 (25x18)
- Number of Registers N/A
- PCI Blocks 1
- Process Technology 65nm
- Processor Blocks N/A
- Program Memory Type SRAM
- Programmability No
- RAM Bits (Kbit) 3888
- Reprogrammability Support No
- Shift Registers Utilize LUT
- Speed Grade 2
- Supplier Temperature Grade Commercial
- Temperature Flag Jun
- Tolerant Configuration Interface Voltage (V) 3.3
- Total Number of Block RAM 108
- Tradename Virtex
- Transceiver Blocks 12
- Transceiver Speed (Gbps) 3.75
- Typical Supply Current (mA) N/A
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | FPGA Virtex®-5 LXT Family 82944 Cells 65nm Technology 1V 1136-Pin FCBGA |
