XC5E-3081-2

ProducentOmronEURoHSYes (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
XC5E-3081-2_OMRON
gender
PL
0,00 zł

Zapytaj o ten produkt

Opis / XC5E-3081-2

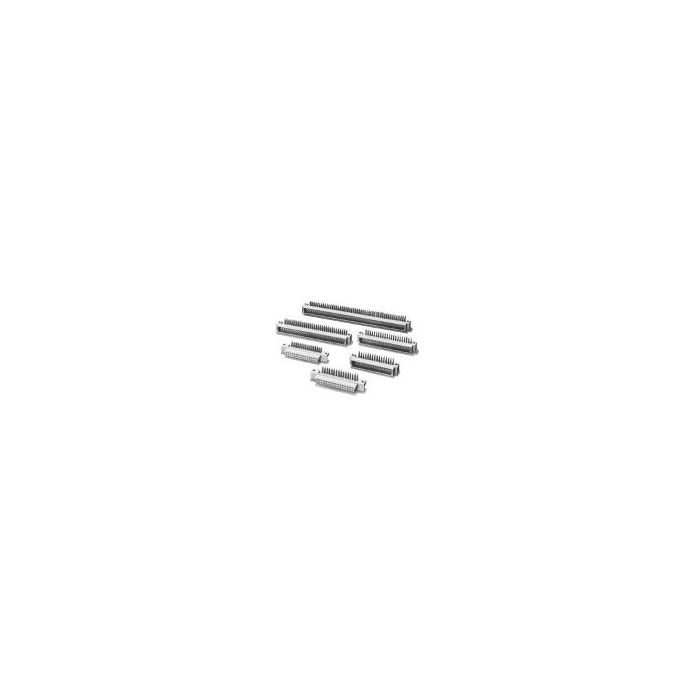

Conn Backplane PL 30 POS 2.54mm Solder ST Thru-Hole

Informacje podstawowe

  • ProducentOmron
  • EURoHSYes (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Inventory 5
  • PCNs 7
  • GIDEP-Alerts 1
  • MaskPart XC5E30812%
  • IntroductionDate May 17, 2012
  • SupplierUrl http://components.omron.com/components/web/webfiles.nsf/(rohsSearch)?OpenAgent?ID=BEGINS&NAME=XC5E-3081-2

Parametry

  • Contact Material Brass
  • Contact Plating Gold Over Nickel
  • Gender PL
  • Housing Color Gray
  • Housing Material Polybutylene Terephthalate
  • Insulation Resistance (MOhm) 1000000
  • Mating Cycle (Cycles) 50
  • Maximum Contact Resistance (mOhm) 20
  • Maximum Current Rating (A) 2
  • Maximum Operating Temperature (°C) 125
  • Maximum Storage Temperature (°C) N/A
  • Maximum Voltage Rating 300VAC
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) N/A
  • Number of Contacts 30
  • Operating Temperature (°C) -55 to 125
  • Speed Rating (Gbps) N/A
  • Termination Method Solder
  • Tradename N/A
  • Type Backplane
  • VITA Standard N/A

Więcej informacji

Do pobrania Download
Main description Conn Backplane PL 30 POS 2.54mm Solder ST Thru-Hole
