XC5B-3231-0

ProducentOmronEURoHSYes (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
XC5B-3231-0_OMRON
gender
SKT
0,00 zł

Zapytaj o ten produkt

Opis / XC5B-3231-0

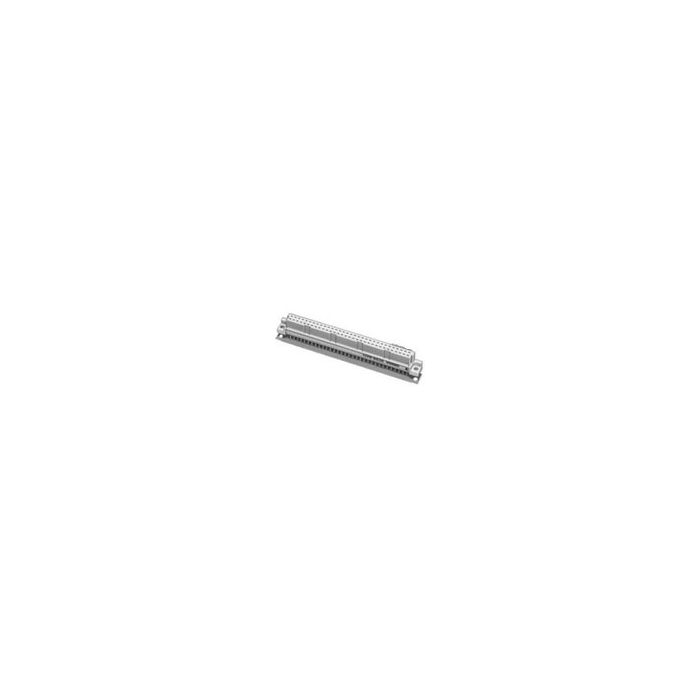

Conn DIN 41612 SKT 32 POS 2.54mm Solder ST Thru-Hole

Informacje podstawowe

  • ProducentOmron
  • EURoHSYes (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 44
  • Inventory 4
  • PCNs 9
  • GIDEP-Alerts 1
  • MaskPart XC5B32310%
  • IntroductionDate Apr 19, 2001
  • SupplierUrl http://components.omron.com/components/web/webfiles.nsf/(rohsSearch)?OpenAgent?ID=BEGINS&NAME=XC5B-3231-0

Parametry

  • Contact Material Phosphor Bronze
  • Contact Plating Gold Over Nickel
  • Gender SKT
  • Housing Color Gray
  • Housing Material Polybutylene Terephthalate
  • Insulation Resistance (MOhm) 1000000
  • Mating Cycle (Cycles) 200
  • Maximum Contact Resistance (mOhm) 20
  • Maximum Current Rating (A) 2
  • Maximum Operating Temperature (°C) 125
  • Maximum Voltage Rating 300VAC
  • Minimum Operating Temperature (°C) -55
  • Number of Contacts 32
  • Operating Temperature (°C) -55 to 125
  • Speed Rating (Gbps) N/A
  • Termination Method Solder
  • Type DIN 41612
  • VITA Standard N/A

Więcej informacji

Do pobrania Download
Main description Conn DIN 41612 SKT 32 POS 2.54mm Solder ST Thru-Hole
