XC5B-2031-0
| Do pobrania | Download |
|---|---|
| Main description | Conn DIN 41612 SKT 20 POS 2.54mm Solder ST Thru-Hole |

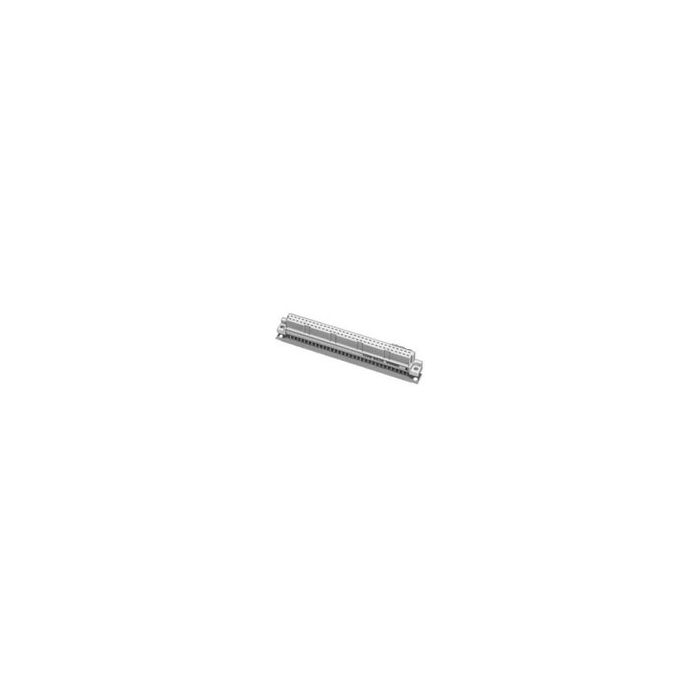

Conn DIN 41612 SKT 20 POS 2.54mm Solder ST Thru-Hole
Informacje podstawowe
- ProducentOmron
- EURoHSYes (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 17
- Inventory 4
- PCNs 7
- GIDEP-Alerts 1
- MaskPart XC5B20310%
- IntroductionDate Apr 19, 2001
- SupplierUrl http://components.omron.com/components/web/webfiles.nsf/(rohsSearch)?OpenAgent?ID=BEGINS&NAME=XC5B-2031-0
Parametry
- Contact Material Phosphor Bronze
- Contact Plating Gold Over Nickel
- Gender SKT
- Housing Color Gray
- Housing Material Polybutylene Terephthalate
- Insulation Resistance (MOhm) 1000000
- Mating Cycle (Cycles) 200
- Maximum Contact Resistance (mOhm) 20
- Maximum Current Rating (A) 2
- Maximum Voltage Rating 300VAC
- Number of Contacts 20
- Speed Rating (Gbps) N/A
- Termination Method Solder
- Type DIN 41612
- VITA Standard N/A
