XC4VLX15-10SFG363C
Do pobrania | Download |
---|---|
Main description | FPGA Virtex®-4 LX Family 13824 Cells 90nm Technology 1.2V 363-Pin FCBGA |

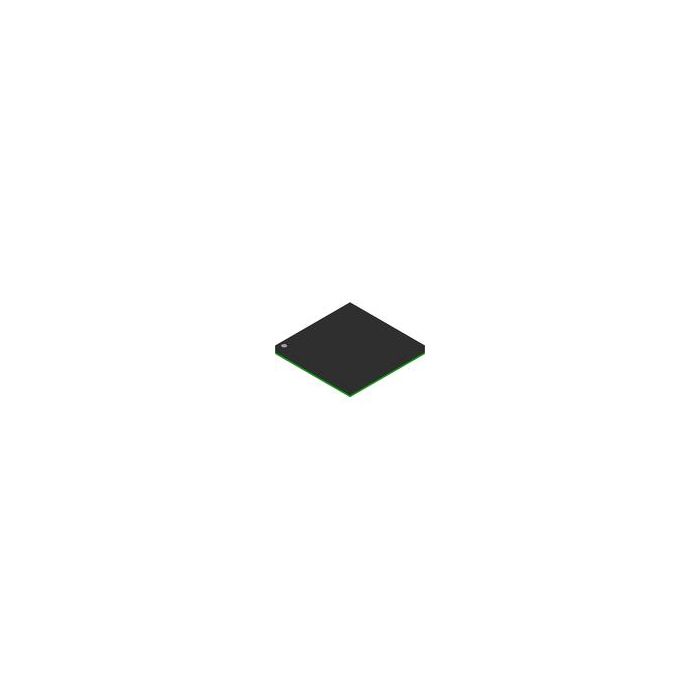

FPGA Virtex®-4 LX Family 13824 Cells 90nm Technology 1.2V 363-Pin FCBGA
Informacje podstawowe
- ProducentXilinx
- EURoHSYes with Exemption (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 2
- Inventory 1
- PCNs 21
- GIDEP-Alerts 1
- MaskPart XC4VLX1510SFG363C%
- IntroductionDate Aug 02, 2004
Parametry
- Copy Protection No
- Dedicated DSP 32
- Device Logic Cells 13824
- Device Logic Gates N/A
- Device Logic Units 13824
- Device Number of DLLs/PLLs 4
- Device System Gates N/A
- Digital Control Impedance No
- Ethernet MACs N/A
- Family Name Virtex®-4 LX
- Giga Multiply Accumulates per Second 16
- I/O Voltage (V) 1.2|1.5|1.8|2.5|3.3
- In-System Programmability No
- Maximum Differential I/O Pairs N/A
- Maximum Distributed RAM Bits 98304
- Maximum I/O Performance 6.5Gbps
- Maximum Internal Frequency (MHz) N/A
- Maximum Number of SERDES Channels N/A
- Maximum Number of User I/Os 240
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time (ns) N/A
- Maximum Storage Temperature (°C) 150
- Mega Multiply Accumulates per second 16000
- Minimum Storage Temperature (°C) -65
- Number of Global Clocks 32
- Number of I/O Banks 9
- Number of Inter Dielectric Layers 10
- Number of Multipliers 64 (18x18)
- Number of Registers N/A
- PCI Blocks N/A
- Process Technology 90nm
- Processor Blocks N/A
- Program Memory Type SRAM
- Programmability No
- RAM Bits (Kbit) 864
- Reprogrammability Support No
- Shift Registers Utilize LUT
- Speed Grade 10
- Supplier Temperature Grade Commercial
- Temperature Flag Jun
- Tolerant Configuration Interface Voltage (V) N/A
- Total Number of Block RAM 48
- Tradename Virtex
- Transceiver Blocks N/A
- Transceiver Speed (Gbps) 3.125
- Typical Supply Current (mA) N/A
