XC3SD1800A-4FG676CES
ProducentXilinxEURoHSNo (2011/65/EU, 2015/863)Automotive No.
- SKU
- XC3SD1800A-4FG676CES_XILINX
0,00 zł
Opis / XC3SD1800A-4FG676CES

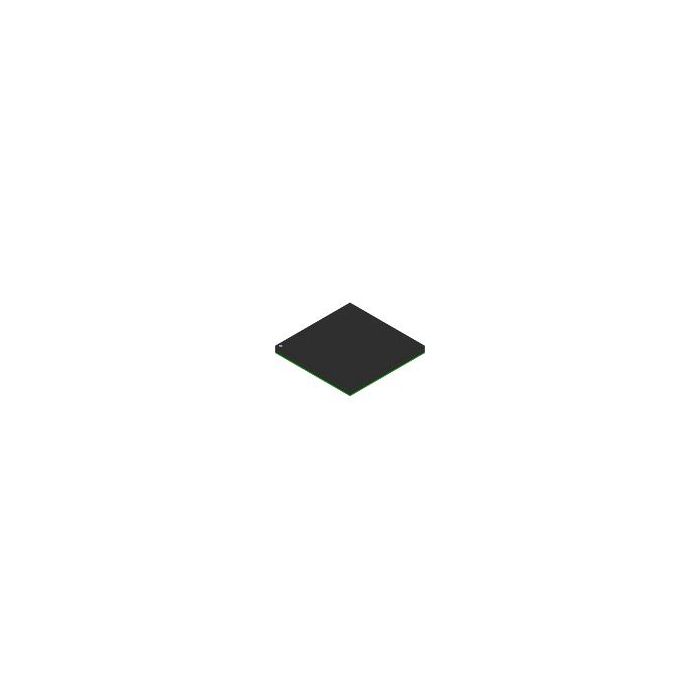

FPGA Spartan®-3A DSP Family 1.8M Gates 37440 Cells 667MHz 90nm Technology 1.2V 676-Pin FBGA
Informacje podstawowe
- ProducentXilinx
- EURoHSNo (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 132
- PCNs 20
- MaskPart XC3SD1800A4FG676CES%
- IntroductionDate Mar 30, 2007
Parametry
- Copy Protection No
- Dedicated DSP 84
- Device Logic Cells 37440
- Device Logic Gates 1800000
- Device Logic Units 37440
- Device Number of DLLs/PLLs 8
- Device System Gates 1800000
- Digital Control Impedance No
- Ethernet MACs N/A
- Family Name Spartan®-3A DSP
- Giga Multiply Accumulates per Second N/A
- I/O Voltage (V) 1.2|1.5|1.8|2.5|3.3
- In-System Programmability No
- Maximum Differential I/O Pairs 227
- Maximum Distributed RAM Bits 266240
- Maximum I/O Performance 622Mbps
- Maximum Internal Frequency (MHz) 667
- Maximum Number of SERDES Channels N/A
- Maximum Number of User I/Os 519
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time (ns) N/A
- Mega Multiply Accumulates per second N/A
- Number of Global Clocks 8
- Number of I/O Banks 4
- Number of Inter Dielectric Layers 8
- Number of Multipliers N/A
- Number of Registers N/A
- PCI Blocks N/A
- Process Technology 90nm
- Processor Blocks N/A
- Program Memory Type SRAM
- Programmability Yes
- RAM Bits (Kbit) 1512
- Reprogrammability Support Yes
- Shift Registers Utilize LUT
- Speed Grade 4
- Supplier Temperature Grade Commercial
- Temperature Flag Jun
- Tolerant Configuration Interface Voltage (V) N/A
- Total Number of Block RAM 84
- Tradename Spartan
- Transceiver Blocks N/A
- Typical Supply Current (mA) N/A
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | FPGA Spartan®-3A DSP Family 1.8M Gates 37440 Cells 667MHz 90nm Technology 1.2V 676-Pin FBGA |
