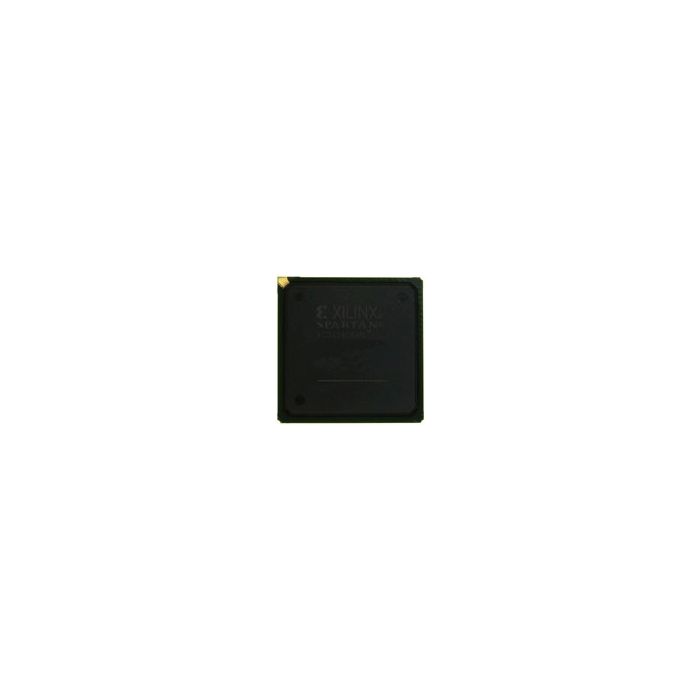

XC3S1400AN-5FGG676C

ProducentXilinxEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
XC3S1400AN-5FGG676C_XILINX
0,00 zł

Zapytaj o ten produkt

Opis / XC3S1400AN-5FGG676C

FPGA Spartan®-3AN Family 1.4M Gates 25344 Cells 770MHz 90nm Technology 1.2V Automotive Medical 676-Pin FBGA

Informacje podstawowe

  • ProducentXilinx
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 161
  • Inventory 2
  • PCNs 27
  • GIDEP-Alerts 1
  • MaskPart XC3S1400AN5FGG676C%
  • IntroductionDate Feb 06, 2007

Parametry

  • Copy Protection Yes
  • Dedicated DSP N/A
  • Device Logic Cells 25344
  • Device Logic Gates 1400000
  • Device Logic Units 25344
  • Device Number of DLLs/PLLs 8
  • Device System Gates 1400000
  • Digital Control Impedance No
  • Ethernet MACs N/A
  • Family Name Spartan®-3AN
  • Giga Multiply Accumulates per Second N/A
  • I/O Voltage (V) 1.2|1.5|1.8|2.5|3.3
  • In-System Programmability Yes
  • Maximum Differential I/O Pairs 227
  • Maximum Distributed RAM Bits 180224
  • Maximum I/O Performance 622Mbps
  • Maximum Internal Frequency (MHz) 770
  • Maximum Number of SERDES Channels N/A
  • Maximum Number of User I/Os 502
  • Maximum Operating Supply Voltage (V) 1.26
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time (ns) N/A
  • Maximum Storage Temperature (°C) 150
  • Mega Multiply Accumulates per second N/A
  • Minimum Operating Supply Voltage (V) 1.14
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -65
  • Number of Global Clocks 8
  • Number of I/O Banks 4
  • Number of Inter Dielectric Layers N/A
  • Number of Multipliers 32 (18x18)
  • Number of Registers N/A
  • PCI Blocks N/A
  • Process Technology 90nm
  • Processor Blocks N/A
  • Program Memory Type Flash
  • Programmability Yes
  • RAM Bits (Kbit) 576
  • Reprogrammability Support Yes
  • Shift Registers Utilize LUT
  • Speed Grade 5
  • Supplier Temperature Grade Commercial
  • Temperature Flag Jun
  • Tolerant Configuration Interface Voltage (V) 3.3
  • Total Number of Block RAM 32
  • Tradename Spartan
  • Transceiver Blocks N/A
  • Transceiver Speed (Gbps) 0.622
  • Typical Operating Supply Voltage (V) 1.2
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description FPGA Spartan®-3AN Family 1.4M Gates 25344 Cells 770MHz 90nm Technology 1.2V Automotive Medical 676-Pin FBGA
