XC2VP30-6FFG896C
ProducentXilinxEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
- SKU
- XC2VP30-6FFG896C_XILINX
0,00 zł
Opis / XC2VP30-6FFG896C

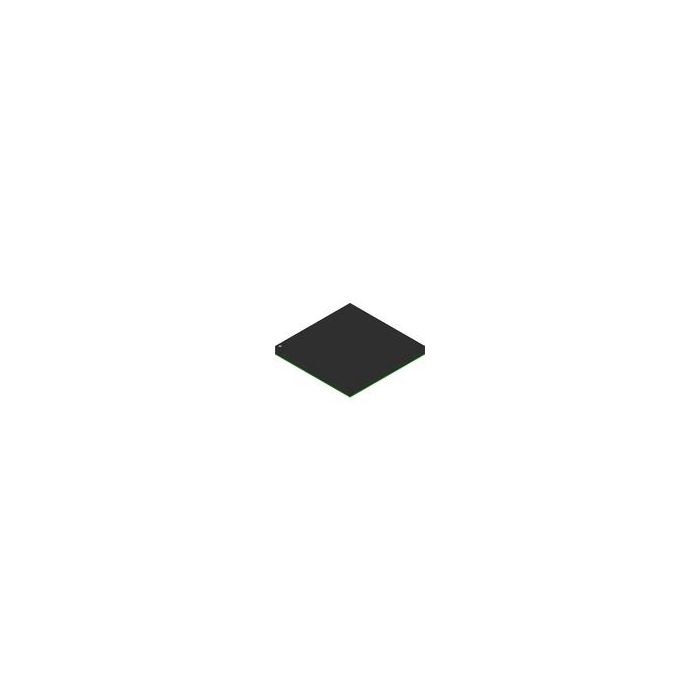

FPGA Virtex-II Pro Family 30816 Cells 1200MHz 0.13um Technology 1.5V 896-Pin FCBGA
Informacje podstawowe
- ProducentXilinx
- EURoHSYes with Exemption (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 366
- Inventory 1
- PCNs 20
- MaskPart XC2VP306FFG896C%
Parametry
- Dedicated DSP N/A
- Device Logic Cells 30816
- Device Logic Gates N/A
- Device Logic Units 30816
- Device Number of DLLs/PLLs 8
- Device System Gates N/A
- Digital Control Impedance Yes
- Ethernet MACs N/A
- Family Name Virtex-II Pro
- Giga Multiply Accumulates per Second N/A
- I/O Voltage (V) 1.5|1.8|2.5|3.3
- In-System Programmability Yes
- Maximum Differential I/O Pairs 272
- Maximum Distributed RAM Bits 438272
- Maximum I/O Performance 840Mbps
- Maximum Internal Frequency (MHz) 1200
- Maximum Number of SERDES Channels N/A
- Maximum Number of User I/Os 556
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time (ns) N/A
- Mega Multiply Accumulates per second N/A
- Number of Global Clocks 16
- Number of I/O Banks 8
- Number of Inter Dielectric Layers 9
- Number of Multipliers 136 (18x18)
- Number of Registers 27392
- PCI Blocks N/A
- Process Technology 0.13um
- Processor Blocks 2
- Program Memory Type SRAM
- Programmability No
- RAM Bits (Kbit) 2448
- Reprogrammability Support Yes
- Shift Registers Utilize LUT
- Speed Grade 6
- Supplier Temperature Grade Commercial
- Temperature Flag Jun
- Tolerant Configuration Interface Voltage (V) 3.3
- Total Number of Block RAM 136
- Tradename Virtex
- Transceiver Blocks 8
- Transceiver Speed (Gbps) 3.125
- Typical Supply Current (mA) N/A
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | FPGA Virtex-II Pro Family 30816 Cells 1200MHz 0.13um Technology 1.5V 896-Pin FCBGA |
