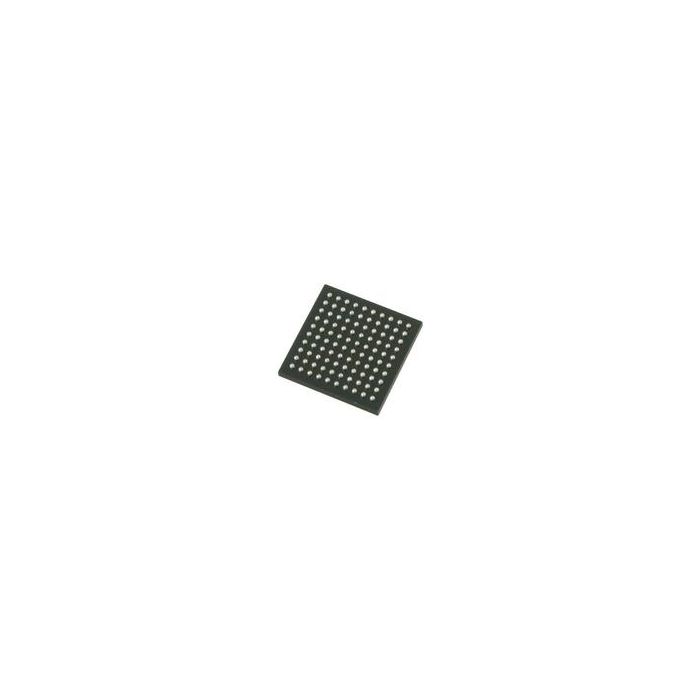

VSC8221XHH

ProducentMicrosemiEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
VSC8221XHH_MICROSEMI
0,00 zł

Zapytaj o ten produkt

Opis / VSC8221XHH

PHY 1-CH 10Mbps/100Mbps/1Gbps/1.25Gbps 1.2V/3.3V 100-Pin TFBGA Tray

Informacje podstawowe

  • ProducentMicrosemi
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 598
  • Inventory 1
  • PCNs 37
  • GIDEP-Alerts 1
  • MaskPart VSC8221XHH%
  • IntroductionDate Jul 17, 2003

Parametry

  • Integrated CDR No
  • JTAG Support Yes
  • Maximum Data Rate 1.25Gbps
  • Maximum Operating Supply Voltage (V) 1.26|3.6
  • Maximum Operating Temperature (°C) 100
  • Maximum Power Dissipation (mW) 1000
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 245(Typ)|401(Typ)|780(Typ)
  • Minimum Operating Supply Voltage (V) 1.14|3
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -65
  • Number of Channels per Chip 1
  • Operating Supply Voltage (V) 1.2|3.3
  • Optical Carrier Level N/A
  • Overhead Octet Support No
  • PHY Line Side Interface No
  • Power Supply Type Analog|Digital
  • Standard Supported IEEE 1149.1|IEEE 802.3
  • Supplier Temperature Grade N/A
  • Type Ethernet Transceiver
  • Typical Data Rate (Mbps) 10/100/1000/1250
  • Typical Operating Supply Voltage (V) 1.2|3.3
  • UTOPIA Level N/A

Więcej informacji

Do pobrania Download
Main description PHY 1-CH 10Mbps/100Mbps/1Gbps/1.25Gbps 1.2V/3.3V 100-Pin TFBGA Tray
