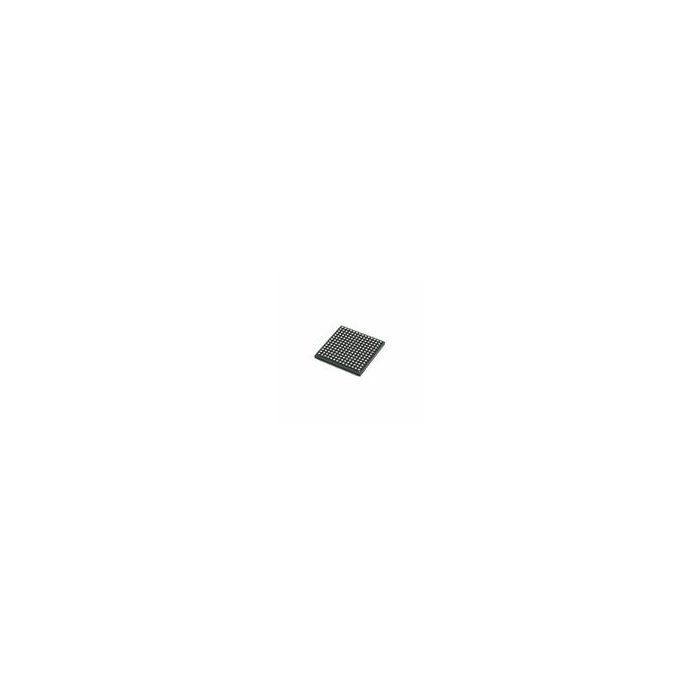

VSC3312XYP-01
ProducentMicrosemiEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
- SKU
- VSC3312XYP-01_MICROSEMI
0,00 zł
Opis / VSC3312XYP-01
Digital Crosspoint Single 12x12 8.5Gbps 2:1 Mux/1:2 Demux Switch
Informacje podstawowe
- ProducentMicrosemi
- EURoHSYes with Exemption (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1
- PCNs 37
- MaskPart VSC3312XYP01%
- IntroductionDate Nov 15, 2010
Parametry
- Array Configuration 12x12
- Cascading Capability No
- Differential Data Transmission Yes
- Equalization Yes
- Input Level CMOS|LVTTL
- Line Code Yes
- MUX/DEMUX Configuration N/R
- Maximum Data Rate (Gbps) 8.5
- Maximum Dual Supply Voltage (V) N/R
- Maximum Fall Time (ps) 300000
- Maximum Propagation Delay Time (ns) 0.5(Typ)
- Maximum Rise Time (ps) 300000
- Maximum Single Supply Voltage (V) 2.625
- Maximum Storage Temperature (°C) 125
- Maximum Supply Current (mA) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2.375
- Minimum Storage Temperature (°C) -40
- Number of Arrays 1
- On-Chip Buffers Yes
- On-Chip Decoder No
- On-Chip Latch Circuit No
- On-Chip MUX/DEMUX Yes
- Output Level CMOS|LVTTL
- Power Supply Type Single
- Programmability Yes
- Supplier Temperature Grade N/A
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 2.5
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Digital Crosspoint Single 12x12 8.5Gbps 2:1 Mux/1:2 Demux Switch |
