ULN2004AD16-U

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
ULN2004AD16-U_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / ULN2004AD16-U

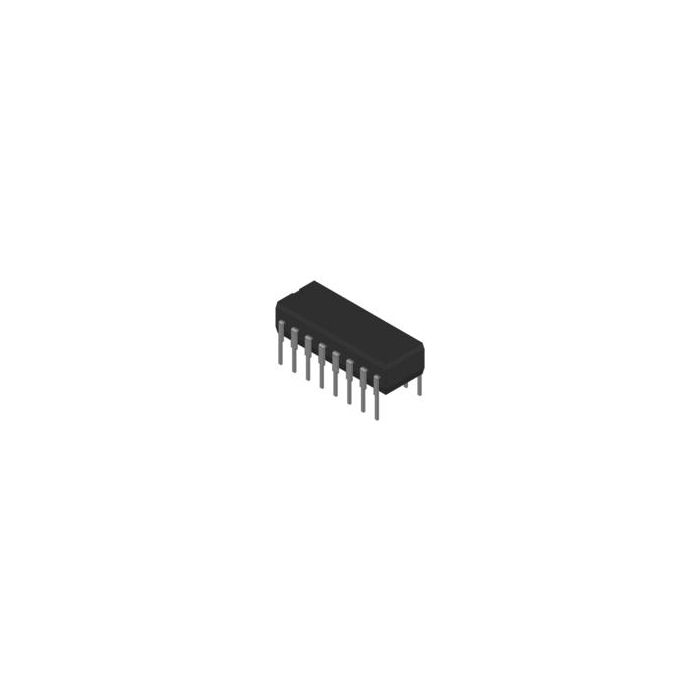

Trans Darlington NPN 50V 0.5A 16-Pin PDIP Tube

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 106
  • Inventory 4
  • PCNs 15
  • MaskPart ULN2004AD16%
  • IntroductionDate Jun 09, 2015
  • EnablingEnergyEfficiency No

Parametry

  • Configuration Array 7
  • Input Logic Capability Yes
  • Input Logic Compatibility CMOS|PMOS
  • Maximum Base Emitter Saturation Voltage (V) N/A
  • Maximum Clamp Diode Forward Voltage (V) 2@350mA
  • Maximum Clamp Diode Leakage Current (uA) 50@50V
  • Maximum Collector Base Voltage (V) N/A
  • Maximum Collector Cut-Off Current (uA) N/A
  • Maximum Collector-Emitter Cut-Off Current (mA) 0.05
  • Maximum Collector-Emitter Saturation Voltage (V) 1.1@250uA@100mA|1.3@350uA@200mA|1.6@500uA@350mA
  • Maximum Collector-Emitter Voltage (V) 50
  • Maximum Continuous DC Collector Current (A) 0.5
  • Maximum Emitter Base Voltage (V) 30
  • Maximum Input Current (mA) 0.5@5V
  • Maximum Operating Temperature (°C) 150
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum DC Current Gain N/A
  • Minimum Operating Temperature (°C) -65
  • Minimum Storage Temperature (°C) -65
  • Number of Elements per Chip 7
  • Output Clamp Diode Yes
  • Supplier Temperature Grade N/A
  • Type NPN
  • Typical Current Gain Bandwidth (MHz) N/A

Więcej informacji

Do pobrania Download
Main description Trans Darlington NPN 50V 0.5A 16-Pin PDIP Tube
