TPS7A4201DGNR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
TPS7A4201DGNR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TPS7A4201DGNR

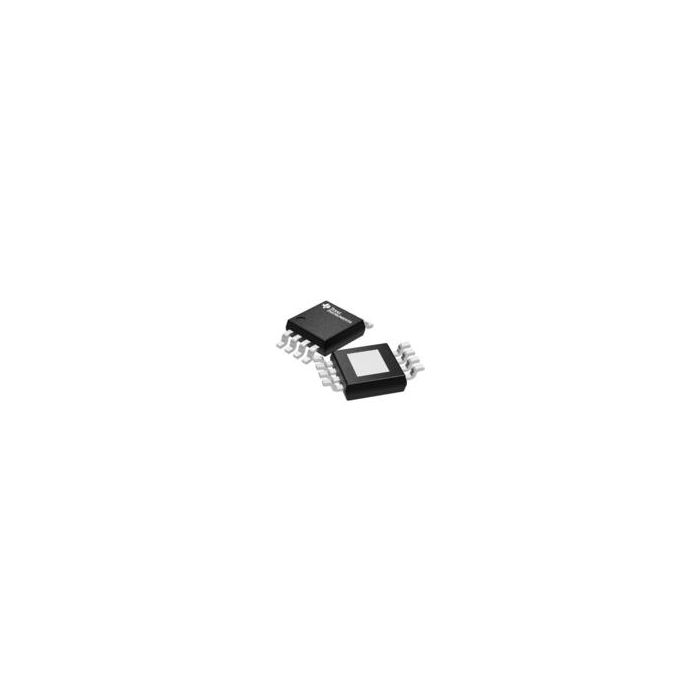

LDO Regulator Pos 1.161V to 26V 0.05A Automotive 8-Pin HVSSOP EP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 67
  • Inventory 6
  • PCNs 39
  • FoundINBOMs 1
  • MaskPart TPS7A4201DGN%
  • IntroductionDate Dec 01, 2011

Parametry

  • Accuracy (%) ±1
  • Junction to Ambient 66.7°C/W
  • Junction to Case 54.1°C/W
  • Line Regulation 0.03%Vo(Typ)
  • Load Regulation 0.31%Vo(Typ)
  • Maximum Dropout Voltage @ Current (V) 1.3@50mA
  • Maximum Input Voltage (V) 28
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 0.05
  • Maximum Power Dissipation (mW) 1830
  • Maximum Quiescent Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 7
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Output Type Adjustable
  • Output Voltage (V) 1.161 to 26
  • Output Voltage Range (V)
  • Polarity Positive
  • Reference Voltage (V) 1.185
  • Special Features Current Limit|Thermal Shutdown Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Dropout Voltage @ Current (V) 0.29@20mA|0.78@50mA
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 0.025

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 1.161V to 26V 0.05A Automotive 8-Pin HVSSOP EP T/R
