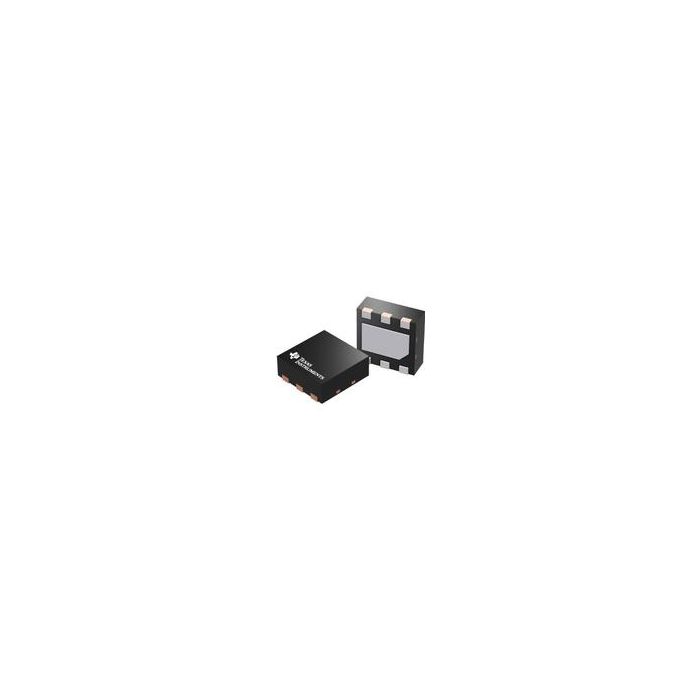

TPS7A3701DRVR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TPS7A3701DRVR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TPS7A3701DRVR

LDO Regulator Pos 1.2V to 5.5V 1A 6-Pin WSON EP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 170
  • Inventory 3
  • PCNs 39
  • MaskPart TPS7A3701DRV%
  • IntroductionDate Mar 16, 2013

Parametry

  • Accuracy (%) ±0.23
  • Junction to Ambient 67.2°C/W
  • Junction to Case 87.6°C/W
  • Line Regulation 0.01%/V(Typ)
  • Load Regulation 0.5%(Typ)
  • Maximum Dropout Voltage @ Current (V) N/A
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 1
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.2
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Output Type Adjustable
  • Output Voltage (V) 1.2 to 5.5
  • Output Voltage Range (V)
  • Polarity Positive
  • Reference Voltage (V) 1.2(Typ)
  • Special Features Current Limit|Thermal Shutdown Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Dropout Voltage @ Current (V) N/A
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 0.4

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 1.2V to 5.5V 1A 6-Pin WSON EP T/R
