TPS7A3001DGNR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TPS7A3001DGNR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TPS7A3001DGNR

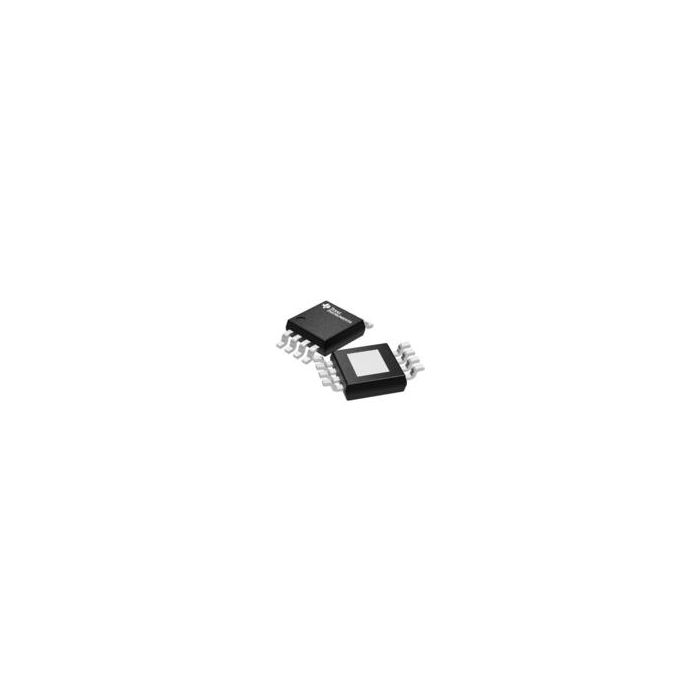

LDO Regulator Neg -1.166V to -33V -0.2A 8-Pin HVSSOP EP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 37
  • Inventory 6
  • PCNs 41
  • MaskPart TPS7A3001DGN%
  • IntroductionDate Nov 01, 2009

Parametry

  • Accuracy (%) ±1.5
  • Junction to Ambient 63.4°C/W
  • Junction to Case 53°C/W
  • Line Regulation 0.14%Vo(Typ)
  • Load Regulation 0.04%Vo(Typ)
  • Maximum Dropout Voltage @ Current (V) 0.6@200mA
  • Maximum Input Voltage (V) -3
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) -0.2
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) -35
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Output Type Adjustable
  • Output Voltage (V) -1.166 to -33
  • Output Voltage Range (V)
  • Polarity Negative
  • Reference Voltage (V) -1.166
  • Special Features Current Limit|Thermal Shutdown Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Dropout Voltage @ Current (V) 0.216@100mA|0.325@200mA
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 0.05

Więcej informacji

Do pobrania Download
Main description LDO Regulator Neg -1.166V to -33V -0.2A 8-Pin HVSSOP EP T/R
