TPS73001DBVTG4

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TPS73001DBVTG4_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TPS73001DBVTG4

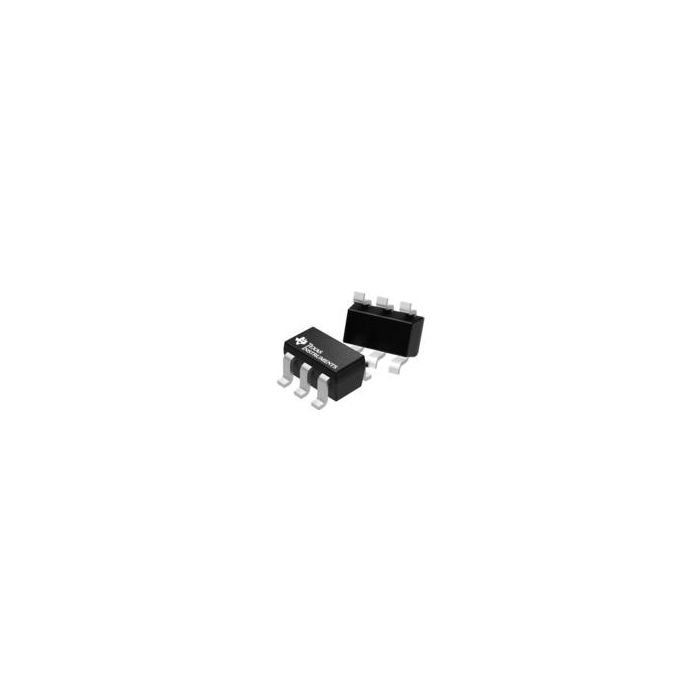

LDO Regulator Pos 1.22V to 5.5V 0.2A 6-Pin SOT-23 T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 118
  • Inventory 8*
  • PCNs 47
  • GIDEP-Alerts 2
  • MaskPart TPS73001DBV%G4
  • IntroductionDate Jul 01, 2004

Parametry

  • Accuracy (%) ±2
  • Junction to Ambient 255°C/W
  • Junction to Case 65°C/W
  • Line Regulation 0.05%/V(Typ)
  • Load Regulation 5mV(Typ)
  • Maximum Dropout Voltage @ Current (V) 0.21@200mA
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 0.2
  • Maximum Power Dissipation (mW) 560
  • Maximum Quiescent Current (mA) 0.25
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.7
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Output Type Adjustable
  • Output Voltage (V) 1.22 to 5.5
  • Output Voltage Range (V)
  • Polarity Positive
  • Reference Voltage (V) 1.225(Typ)
  • Special Features Current Limit|Excellent Line and Load Transient Response|Thermal Shutdown Protection
  • Supplier Temperature Grade Extended
  • Type LDO
  • Typical Dropout Voltage @ Current (V) 0.12@200mA
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 0.17

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 1.22V to 5.5V 0.2A 6-Pin SOT-23 T/R
