TPS70933DRVR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TPS70933DRVR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TPS70933DRVR

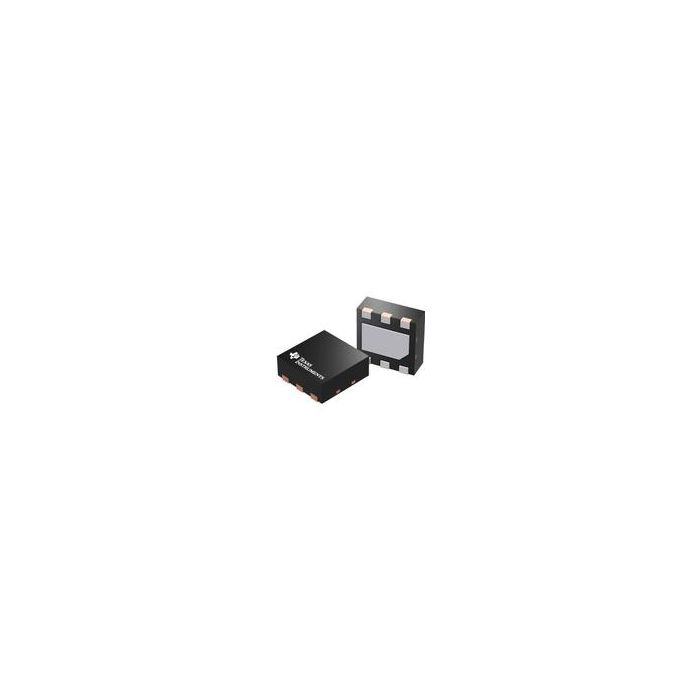

LDO Regulator Pos 3.3V 0.15A 6-Pin WSON EP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 154
  • Inventory 6
  • PCNs 40
  • MaskPart TPS70933DRV%
  • IntroductionDate Jul 01, 2017

Parametry

  • Accuracy (%) ±1
  • Junction to Ambient 73.1°C/W
  • Junction to Case 97°C/W
  • Line Regulation 3mV(Typ)
  • Load Regulation 20mV(Typ)
  • Maximum Dropout Voltage @ Current (V) 0.65@50mA|1.4@150mA
  • Maximum Input Voltage (V) 30
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 0.15
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.7
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Number of Outputs 1
  • Output Type Fixed
  • Output Voltage (V) 3.3
  • Output Voltage Range (V) 1.8 to 10
  • Polarity Positive
  • Reference Voltage (V) N/A
  • Special Features Reverse Current Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Dropout Voltage @ Current (V) 0.295@50mA|0.96@150mA
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 0.001

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 3.3V 0.15A 6-Pin WSON EP T/R
