TPS63060DSCR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TPS63060DSCR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TPS63060DSCR

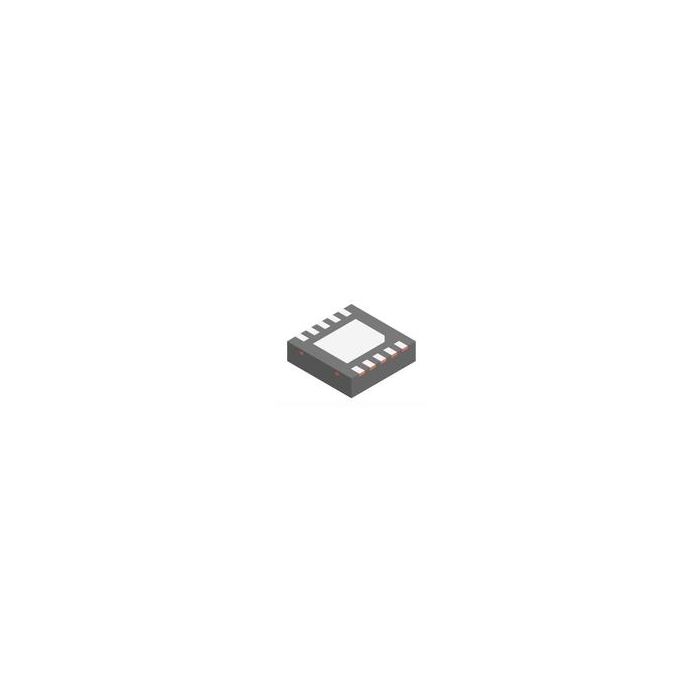

Conv DC-DC 2.5V to 12V Step Down/Step Up Single-Out 2.5V to 8V 1A 10-Pin WSON EP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1
  • Inventory 8
  • PCNs 41
  • MaskPart TPS63060DSC%
  • IntroductionDate Apr 01, 2011

Parametry

  • Efficiency (%) 93
  • Isolation N/A
  • Line Regulation 0.5%(Typ)
  • Load Regulation 0.5%(Typ)
  • Maximum Input Voltage (V) 12
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 1
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.5
  • Minimum Isolation Voltage N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 2.5 to 12
  • Output Type Adjustable
  • Output Voltage (V) 2.5 to 8
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 2600
  • Switching Regulator Yes
  • Technology N/A
  • Type Step Down|Step Up
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 30

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.5V to 12V Step Down/Step Up Single-Out 2.5V to 8V 1A 10-Pin WSON EP T/R
