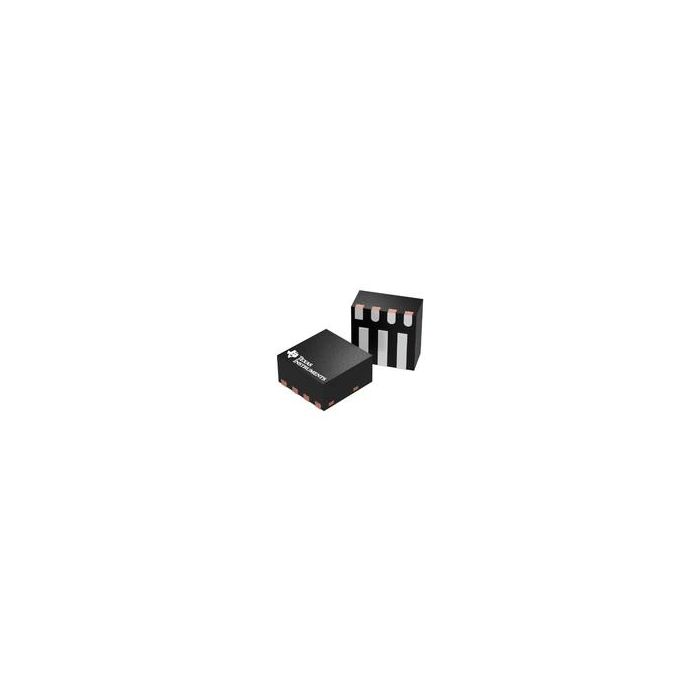

TPS62086RLTT

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TPS62086RLTT_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TPS62086RLTT

Conv DC-DC 2.5V to 6V Synchronous Step Down Single-Out 3.3V 3A 7-Pin VQFN T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 25
  • Inventory 4
  • PCNs 40
  • MaskPart TPS62086RLT%
  • IntroductionDate Oct 30, 2013

Parametry

  • Efficiency (%) 95
  • Isolation N/A
  • Line Regulation 0.02%/V(Typ)
  • Load Regulation 0.16%/A(Typ)
  • Maximum Input Voltage (V) 6
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 3
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.5
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 2.5 to 6
  • Output Type Fixed
  • Output Voltage (V) 3.3
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 2400(Typ)
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 17

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.5V to 6V Synchronous Step Down Single-Out 3.3V 3A 7-Pin VQFN T/R
