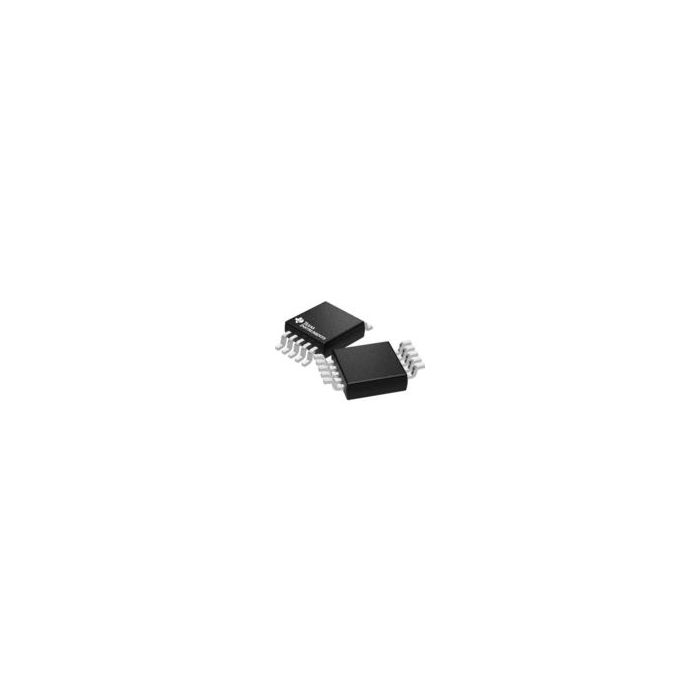

TPS62003DGSRG4

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TPS62003DGSRG4_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TPS62003DGSRG4

Conv DC-DC 2V to 5.5V Synchronous Step Down Single-Out 0.8V to 5.5V 0.6A 10-Pin VSSOP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 284
  • Inventory 6*
  • PCNs 42
  • GIDEP-Alerts 1
  • MaskPart TPS62003DGS%G4
  • IntroductionDate Nov 15, 2007

Parametry

  • Efficiency (%) 95(Typ)
  • Isolation N/A
  • Line Regulation 0.05%/V(Typ)
  • Load Regulation 0.6%(Typ)
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 0.6
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 2 to 5.5
  • Output Type Adjustable
  • Output Voltage (V) 0.8 to 5.5
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 500 to 1000
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 50

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2V to 5.5V Synchronous Step Down Single-Out 0.8V to 5.5V 0.6A 10-Pin VSSOP T/R
