TPS61253YFFR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TPS61253YFFR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TPS61253YFFR

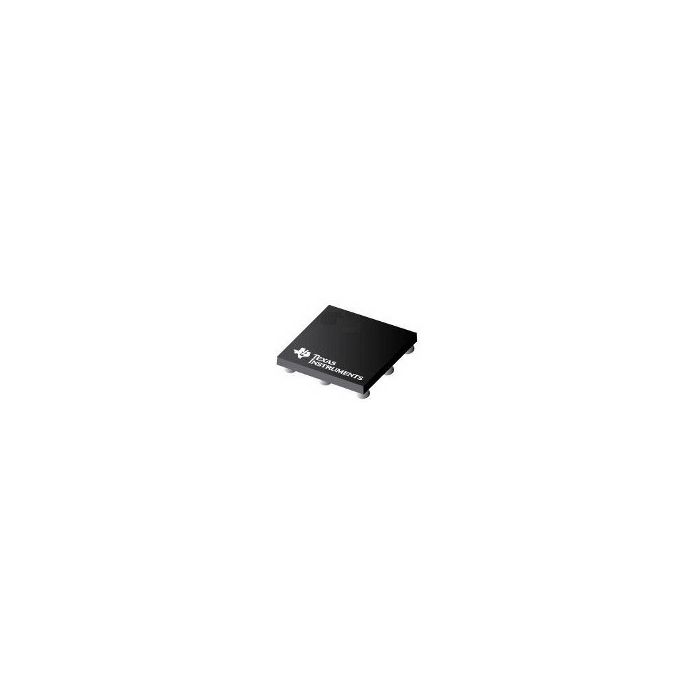

Conv DC-DC 2.65V to 4.85V Synchronous Step Up Single-Out 5V 9-Pin DSBGA T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 78
  • Inventory 4
  • PCNs 39
  • MaskPart TPS61253YFF%
  • IntroductionDate May 18, 2012

Parametry

  • Efficiency (%) 93
  • Isolation Non-Isolated
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum High Level Output Voltage (V) N/A
  • Maximum Input Voltage (V) 4.85
  • Maximum Low Level Output Voltage (V) N/A
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) N/A
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.65
  • Minimum Isolation Voltage N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 2.65 to 4.85
  • Output Type Fixed
  • Output Voltage (V) 5
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 3500(Typ)
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Up
  • Typical Input Voltage (V) N/A
  • Typical Output Resistance (Ohm) N/A
  • Typical Quiescent Current (uA) 30
  • Typical Switch Current (A) 3.6

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.65V to 4.85V Synchronous Step Up Single-Out 5V 9-Pin DSBGA T/R
