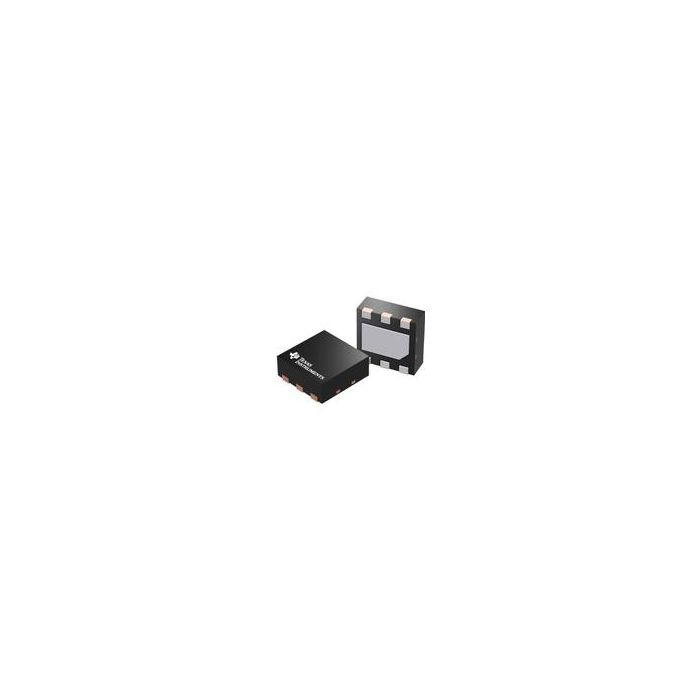

TPS61240DRVR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TPS61240DRVR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TPS61240DRVR

Conv DC-DC 2.3V to 5.5V Step Up Single-Out 5V 0.45A 6-Pin WSON EP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 56
  • Inventory 4
  • PCNs 43
  • GIDEP-Alerts 1
  • MaskPart TPS61240DRV%
  • IntroductionDate Apr 01, 2007

Parametry

  • Efficiency (%) 90
  • Isolation N/A
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 0.45
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 125
  • Minimum Input Voltage (V) 2.3
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -40
  • Number of Outputs 1
  • Operating Supply Voltage (V) 2.3 to 5.5
  • Output Type Fixed
  • Output Voltage (V) 5
  • Supplier Temperature Grade Industrial
  • Switching Frequency (kHz) 4000
  • Switching Regulator Yes
  • Technology N/A
  • Type Step Up
  • Typical Input Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.3V to 5.5V Step Up Single-Out 5V 0.45A 6-Pin WSON EP T/R
