TPS61029DRCR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TPS61029DRCR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TPS61029DRCR

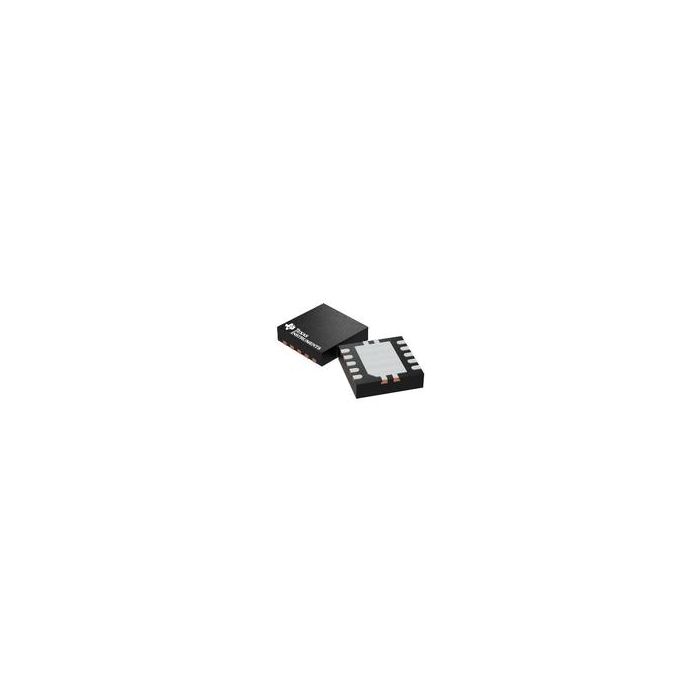

Conv DC-DC 0.9V to 5.5V Synchronous Step Up Single-Out 1.8V to 5.5V 1.5A 10-Pin VSON EP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 63
  • Inventory 7
  • PCNs 61
  • MaskPart TPS61029DRC%
  • IntroductionDate Jun 10, 2004
  • AliasParts TPS61029DRCRG4

Parametry

  • Efficiency (%) 96
  • Isolation Non-Isolated
  • Line Regulation 0.6%
  • Load Regulation 0.6%
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 1.5
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 0.9
  • Minimum Isolation Voltage N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 0.9 to 5.5
  • Output Type Adjustable
  • Output Voltage (V) 1.8 to 5.5
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 720
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Up
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 25

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 0.9V to 5.5V Synchronous Step Up Single-Out 1.8V to 5.5V 1.5A 10-Pin VSON EP T/R
