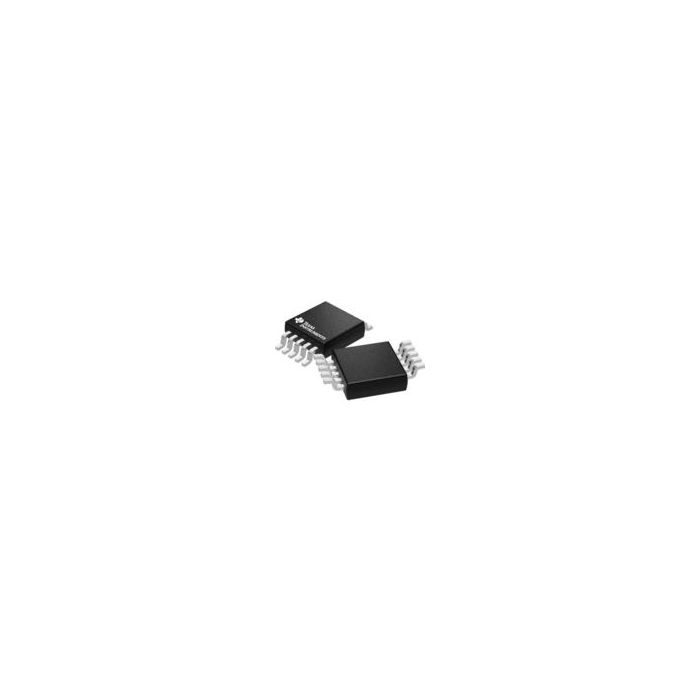

TPS60503DGSR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TPS60503DGSR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TPS60503DGSR

Charge Pump STPDN 1.5V 250mA 10-Pin VSSOP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 50
  • Inventory 5*
  • PCNs 42
  • MaskPart TPS60503DGS%
  • IntroductionDate Oct 01, 2001

Parametry

  • Efficiency (%) 90
  • Function Step Down
  • Maximum Operating Supply Voltage (V) 6.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 555
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 1.8
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Output Current (mA) 250(Max)
  • Output Type Fixed
  • Output Voltage (V) 1.5
  • Supplier Temperature Grade Industrial
  • Switching Frequency (kHz) 1200
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Charge Pump STPDN 1.5V 250mA 10-Pin VSSOP T/R
