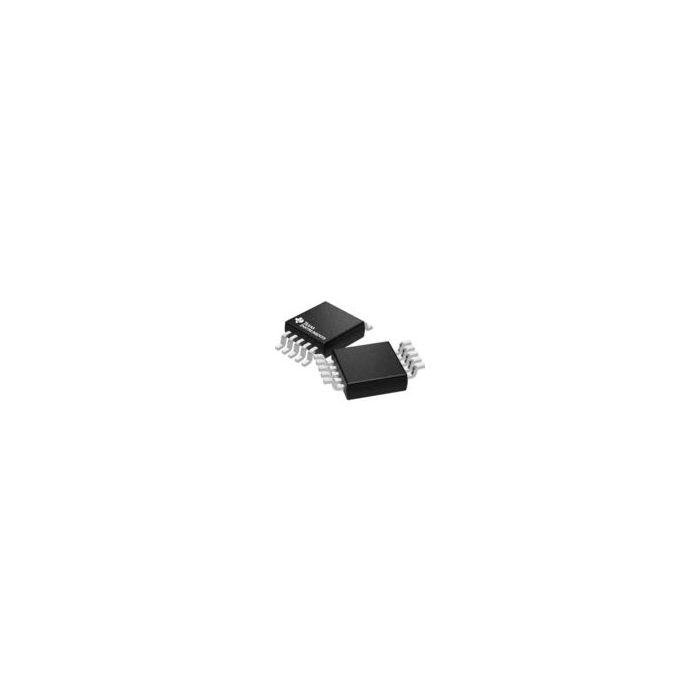

TPS60303DGSG4
Do pobrania | Download |
---|---|
Main description | Charge Pump STPUP 1.8V to 3.6V/3V 40mA/20mA 10-Pin VSSOP Tube |
Charge Pump STPUP 1.8V to 3.6V/3V 40mA/20mA 10-Pin VSSOP Tube
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 3
- Inventory 4*
- PCNs 40
- MaskPart TPS60303DGS%G4
- IntroductionDate Apr 01, 2005
Parametry
- Efficiency (%) 90
- Function Step Up
- Maximum Power Dissipation (mW) 424
- Maximum Supply Current (mA) N/A
- Output Current (mA) 40(Max)|20(Max)
- Output Type Adjustable|Fixed
- Output Voltage (V) 1.8 to 3.6|3
- Supplier Temperature Grade Industrial
- Switching Frequency (kHz) 900
