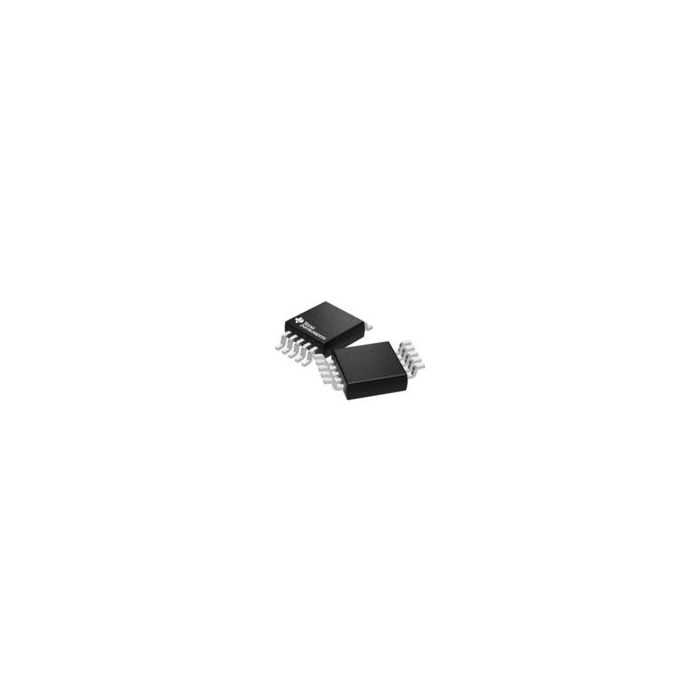

TPS60213DGS

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TPS60213DGS_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TPS60213DGS

Charge Pump STPUP 3.3V 50mA 10-Pin VSSOP Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 69
  • Inventory 5
  • PCNs 44
  • MaskPart TPS60213DGS%
  • IntroductionDate Apr 01, 2005
  • AliasParts TPS60213DGSG4

Parametry

  • Efficiency (%) 70(Typ)
  • Function Step Up
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 424
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 1.8
  • Minimum Operating Temperature (°C) -40
  • Output Current (mA) 50(Max)
  • Output Type Fixed
  • Output Voltage (V) 3.3
  • Supplier Temperature Grade Industrial
  • Switching Frequency (kHz) 400
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Charge Pump STPUP 3.3V 50mA 10-Pin VSSOP Tube
