TPS60111PWPR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TPS60111PWPR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TPS60111PWPR

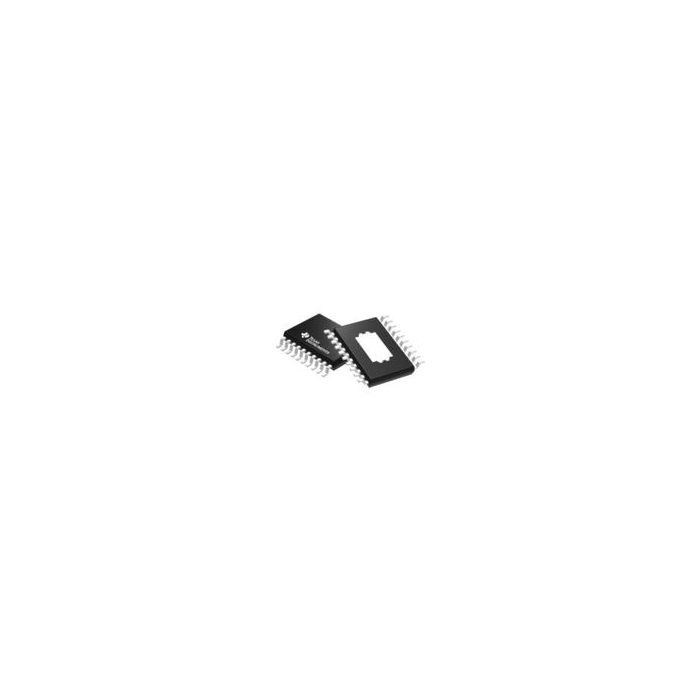

Charge Pump STPUP 5V 150mA 20-Pin HTSSOP EP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 264
  • Inventory 4
  • PCNs 46
  • MaskPart TPS60111PWP%
  • IntroductionDate Feb 01, 2005

Parametry

  • Efficiency (%) 80(Typ)
  • Function Step Up
  • Maximum Operating Supply Voltage (V) 5.4
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 700
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 2.7
  • Minimum Operating Temperature (°C) -40
  • Output Current (mA) 150(Max)
  • Output Type Fixed
  • Output Voltage (V) 5
  • Supplier Temperature Grade Industrial
  • Switching Frequency (kHz) 400
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Charge Pump STPUP 5V 150mA 20-Pin HTSSOP EP T/R
