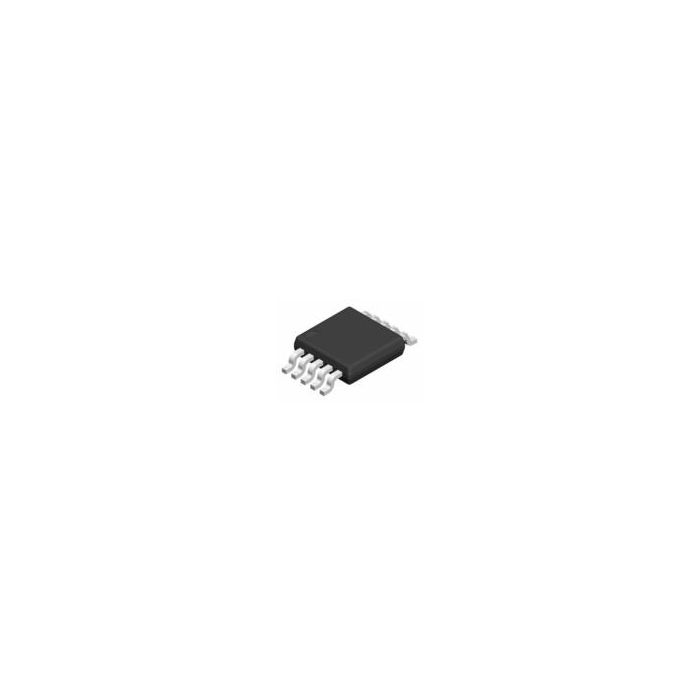

TPS54260DGQR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TPS54260DGQR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TPS54260DGQR

Conv DC-DC 3.5V to 60V Step Down Single-Out 0.8V to 58V 2.5A 10-Pin HVSSOP EP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 5
  • Inventory 2
  • PCNs 45
  • MaskPart TPS54260DGQR%
  • IntroductionDate Aug 01, 2009

Parametry

  • Efficiency (%) N/A
  • Isolation Non-Isolated
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum Input Voltage (V) 60
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 2.5
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 3.5
  • Minimum Isolation Voltage N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) N/A
  • Output Type Adjustable
  • Output Voltage (V) 0.8 to 58
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 450 to 720
  • Switching Regulator Yes
  • Technology N/A
  • Type Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 138

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 3.5V to 60V Step Down Single-Out 0.8V to 58V 2.5A 10-Pin HVSSOP EP T/R
