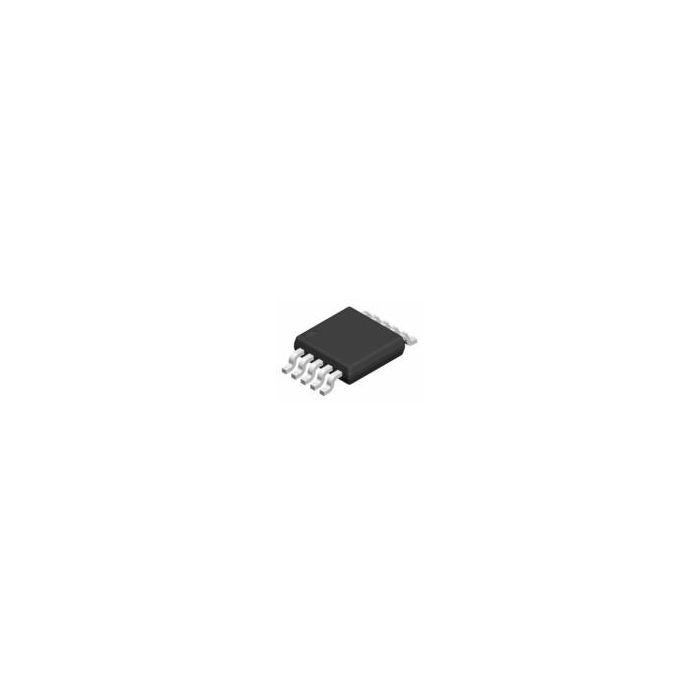

TPS40211DGQR
| Do pobrania | Download |
|---|---|
| Main description | DC/DC Cntrlr Single-OUT Step Up 1000kHz 10-Pin HVSSOP EP T/R |
DC/DC Cntrlr Single-OUT Step Up 1000kHz 10-Pin HVSSOP EP T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 5
- Inventory 6
- PCNs 46
- GIDEP-Alerts 1
- MaskPart TPS40211DGQ%
- IntroductionDate Jul 01, 2007
- AliasParts TPS40211DGQRG4
Parametry
- Control Method PWM
- Maximum Input Voltage (V) 52
- Maximum Output Current (A) N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) 2.5
- Maximum Switching Frequency (kHz) 1000
- Minimum Input Voltage (V) 4.5
- Minimum Output Current (A) N/A
- Minimum Storage Temperature (°C) -55
- Minimum Switching Frequency (kHz) 35
- Number of Outputs 1
- Output Voltage (V) 5 to 300
- Programmability Yes
- Supplier Temperature Grade N/A
- Synchronous Clock Yes
- Synchronous Rectifier Yes
- Topology Step Up
- Typical Gate Driver Pull Down Resistance (Ohm) N/A
- Typical Gate Driver Pull Up Resistance (Ohm) N/A
- Typical Input Voltage (V) N/A
- Typical Output Current (A) N/A
- Typical Quiescent Current (mA) N/A
- Typical Switching Frequency (kHz) N/A
