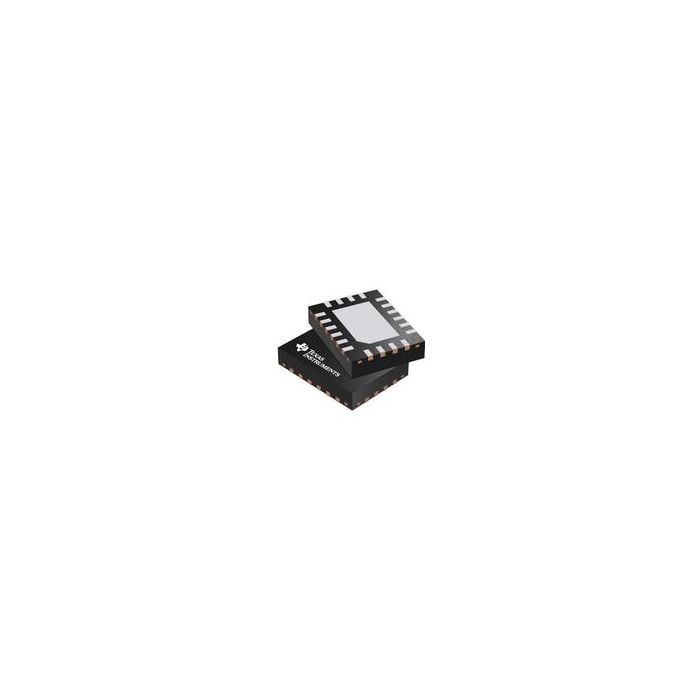

TPS25810RVCR
Do pobrania | Download |
---|---|
Main description | Hi Side Single 6.5V 3.4A 20-Pin WQFN EP T/R |
Hi Side Single 6.5V 3.4A 20-Pin WQFN EP T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 13
- Inventory 6
- PCNs 41
- MaskPart TPS25810RVC%
- IntroductionDate Oct 03, 2015
- EnablingEnergyEfficiency No
Parametry
- Current Limit (A) 3.4
- Enable Logic N/A
- Maximum Input Voltage (V) 6.5
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Input Voltage (V) 4.5
- Minimum Storage Temperature (°C) -65
- Number of Switches 1
- Supplier Temperature Grade N/A
- Switch On Resistance (mOhm) 34
- Type High Side Switch
- Typical Fall Time (us) 550
- Typical Rise Time (us) 1800
- Typical Turn-Off Delay Time (us) 3000
- Typical Turn-On Delay Time (us) 3500
