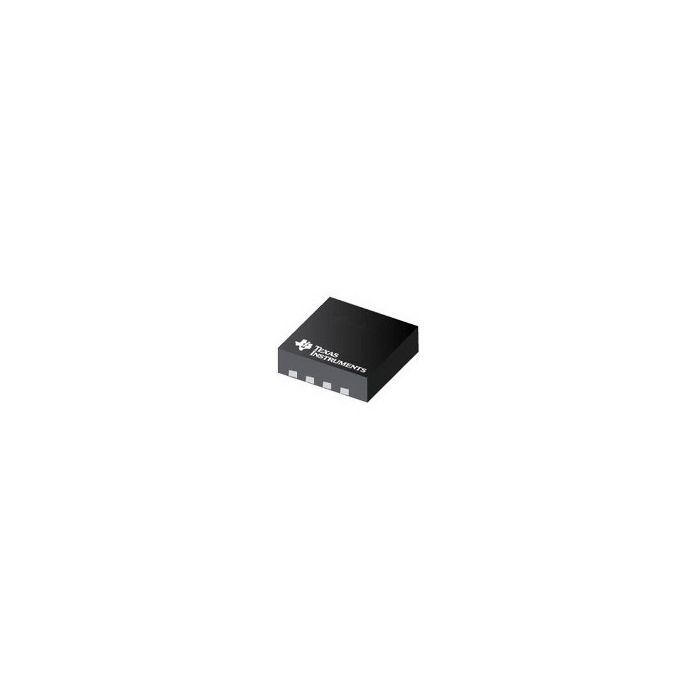

TPS22959DNYR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TPS22959DNYR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TPS22959DNYR

Power Switch 1-OUT 15A 0.0047Ohm 8-Pin WSON EP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 129
  • Inventory 4
  • PCNs 41
  • MaskPart TPS22959DNYR%
  • IntroductionDate Jun 04, 2014

Parametry

  • Interface Type N/A
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time (ns) N/A
  • Minimum Input Voltage (V) 0.8
  • Minimum Operating Temperature (°C) -40
  • Minimum Output Current (A) 15(Max)
  • Number of Outputs 1
  • Operating Supply Voltage Range (V) 2.5 to 5.5
  • Output Voltage Range (V) 5.5(Max)
  • Supplier Temperature Grade N/A
  • Supply Current (mA) N/A
  • Switch On Resistance (Ohm) 0.0047
  • Type N/A

Więcej informacji

Do pobrania Download
Main description Power Switch 1-OUT 15A 0.0047Ohm 8-Pin WSON EP T/R
