TPS2062ADRBTG4

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TPS2062ADRBTG4_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TPS2062ADRBTG4

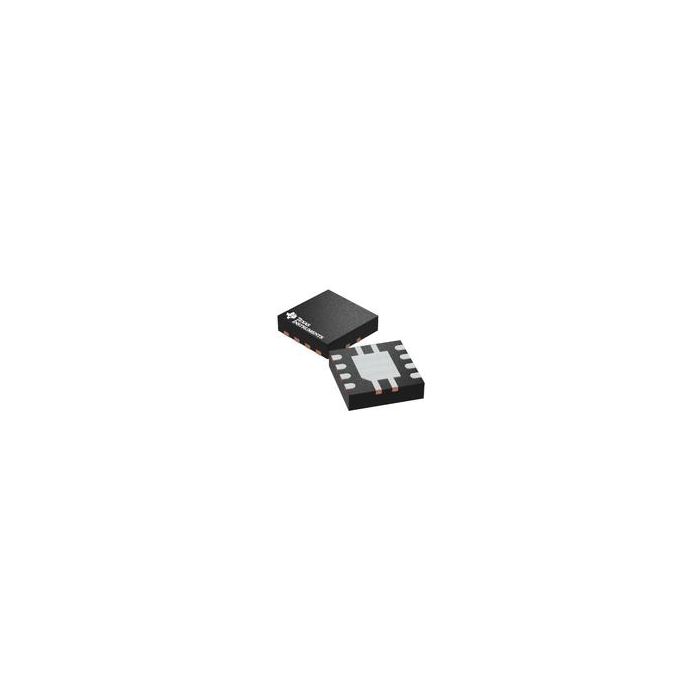

USB Power Switch Dual 5.5V 1.6A 8-Pin VSON EP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 17
  • Inventory 5*
  • PCNs 42
  • MaskPart TPS2062ADRB%G4
  • IntroductionDate Feb 01, 2008

Parametry

  • Current Limit (A) 1.6
  • Enable Logic Active Low
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 1600
  • Minimum Input Voltage (V) 2.7
  • Minimum Operating Temperature (°C) -40
  • Number of Switches 2
  • Supplier Temperature Grade Industrial
  • Switch On Resistance (mOhm) 70
  • Type USB Power Switch
  • Typical Fall Time (us) 500(Max)
  • Typical Rise Time (us) 600
  • Typical Turn-Off Delay Time (us) 3000(Max)
  • Typical Turn-On Delay Time (us) 3000(Max)
  • Typical UVLO Threshold (V) 2.5(Max)

Więcej informacji

Do pobrania Download
Main description USB Power Switch Dual 5.5V 1.6A 8-Pin VSON EP T/R
