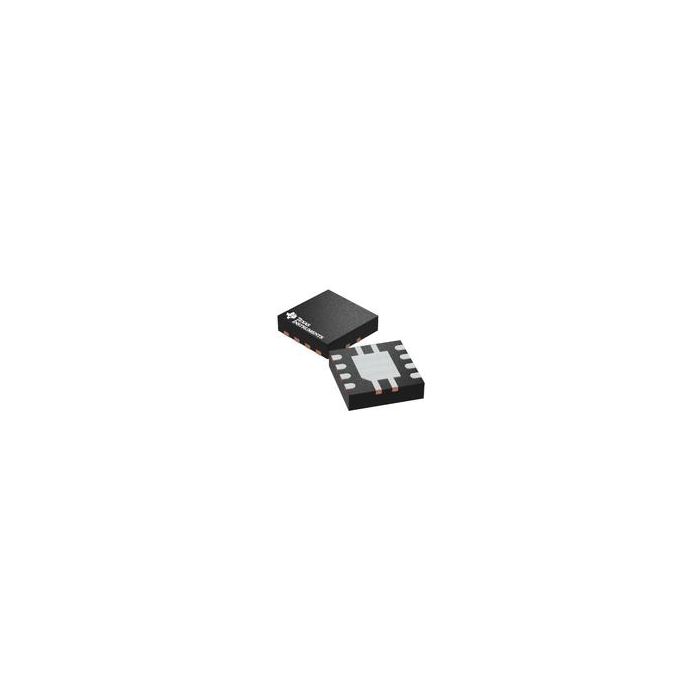

TPS2042BDRBT

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TPS2042BDRBT_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TPS2042BDRBT

USB Power Switch Dual 5.5V 0.75A to 1.25A 8-Pin VSON EP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 25
  • Inventory 6
  • PCNs 43
  • MaskPart TPS2042BDRB%
  • IntroductionDate Oct 01, 2008

Parametry

  • Current Limit (A) 0.75 to 1.25
  • Enable Logic Active Low
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 1600
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.7
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Switches 2
  • Supplier Temperature Grade N/A
  • Switch On Resistance (mOhm) 75
  • Type USB Power Switch
  • Typical Fall Time (us) 500(Max)
  • Typical Rise Time (us) 600
  • Typical Turn-Off Delay Time (us) 10000(Max)
  • Typical Turn-On Delay Time (us) 3000(Max)
  • Typical UVLO Threshold (V) N/A

Więcej informacji

Do pobrania Download
Main description USB Power Switch Dual 5.5V 0.75A to 1.25A 8-Pin VSON EP T/R
