TPS1100PWLE

ProducentTexas InstrumentsEURoHSUnknown (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TPS1100PWLE_TEXAS_INSTRUMENTS
material
Si
0,00 zł

Zapytaj o ten produkt

Opis / TPS1100PWLE

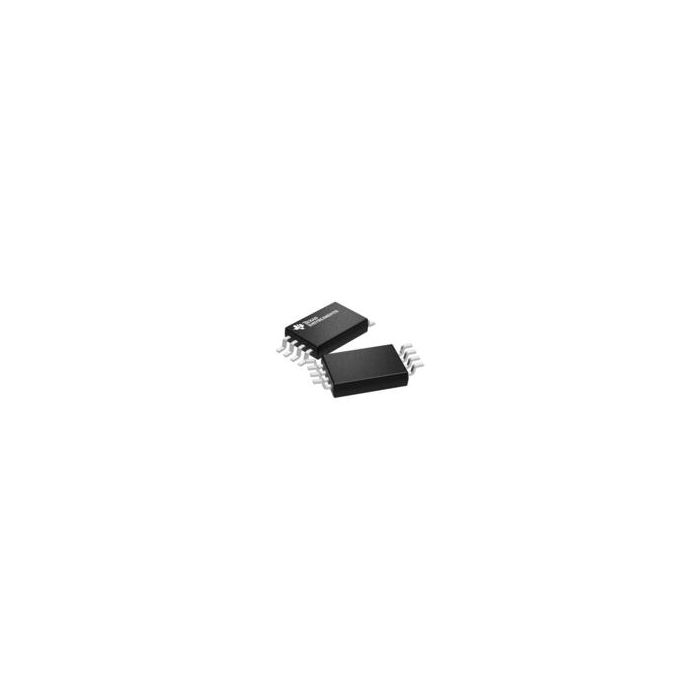

Trans MOSFET P-CH Si 15V 1.27A 8-Pin TSSOP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSUnknown (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 2
  • Inventory 4*
  • PCNs 39
  • MaskPart TPS1100PW%
  • IntroductionDate Dec 01, 1993

Parametry

  • Category Small Signal
  • Channel Mode Enhancement
  • Channel Type P
  • Configuration Single Quad Drain Triple Source
  • Material Si
  • Maximum Continuous Drain Current (A) 1.27
  • Maximum Drain Source Resistance (mOhm) 400@4.5V
  • Maximum Drain Source Voltage (V) 15
  • Maximum Gate Source Voltage (V) 2
  • Maximum Gate Threshold Voltage (V) 1.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) 504
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Number of Elements per Chip 1
  • Supplier Temperature Grade N/A
  • Typical Fall Time (ns) 2
  • Typical Gate Charge @ 10V (nC) 5.45
  • Typical Gate Charge @ Vgs (nC) 5.45@10V
  • Typical Input Capacitance @ Vds (pF) N/A
  • Typical Rise Time (ns) 10
  • Typical Turn-Off Delay Time (ns) 13
  • Typical Turn-On Delay Time (ns) 4.5

Więcej informacji

Do pobrania Download
Main description Trans MOSFET P-CH Si 15V 1.27A 8-Pin TSSOP T/R
