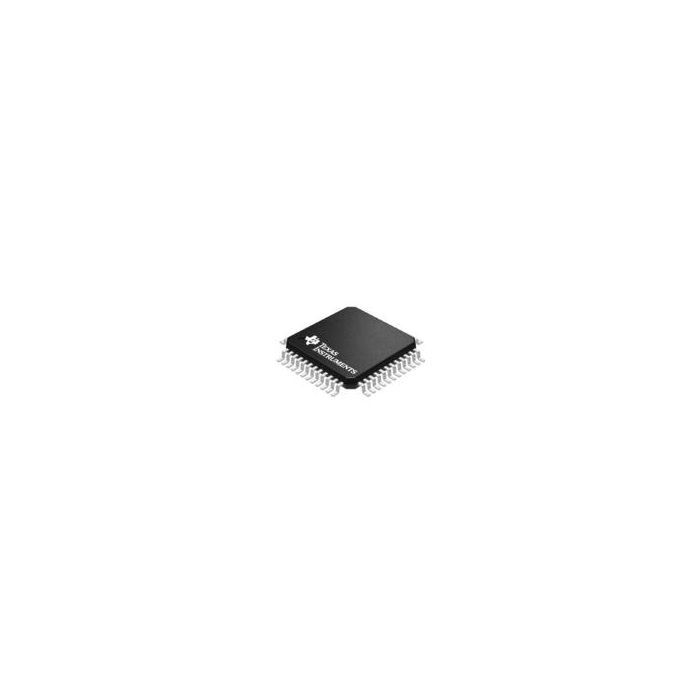

TLV320AIC24CPFB
Do pobrania | Download |
---|---|
Main description | Voiceband Audio Codec 2ADC / 2DAC Ch Automotive 48-Pin TQFP Tray |
Voiceband Audio Codec 2ADC / 2DAC Ch Automotive 48-Pin TQFP Tray
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 11
- Inventory 1
- PCNs 59
- MaskPart TLV320AIC24CPFB%
- IntroductionDate Feb 01, 2005
- AliasParts TLV320AIC24CPFBG4
Parametry
- ADC/DAC Resolution (bit) 16
- Interface Type Serial (2-Wire, 4-Wire, I2C)
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADC Inputs 1
- Number of ADCs 2
- Number of Channels 2ADC / 2DAC
- Number of DAC Outputs 1
- Number of DACs 2
- Power Supply Type Analog|Digital
- Sampling Rate (ksps) 26
- Signal to Noise Ratio (dB) 92
- Supplier Temperature Grade Commercial
- Total Harmonic Distortion Plus Noise (THD+N) (dB) 88
- Type Voiceband
