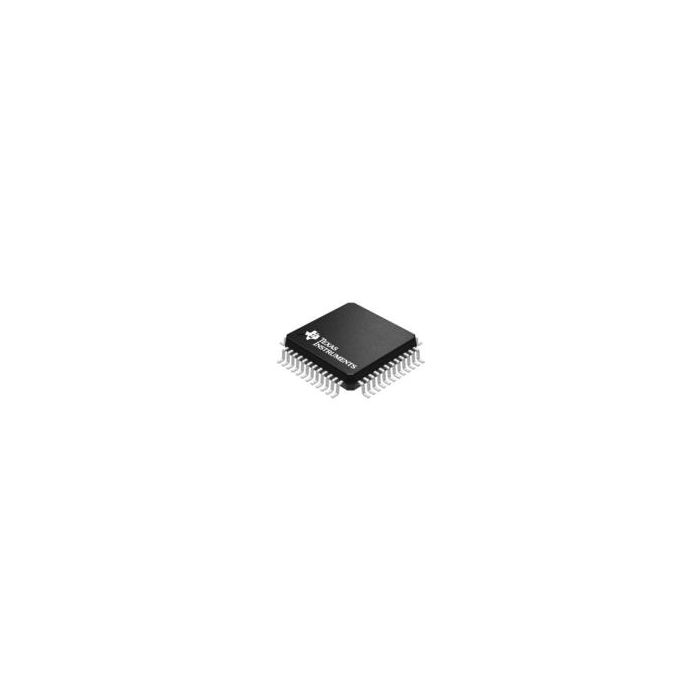

TLV320AIC22CPT

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TLV320AIC22CPT_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TLV320AIC22CPT

Voiceband Audio Codec 2ADC / 2DAC Ch 48-Pin LQFP

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1
  • Inventory 7
  • PCNs 48
  • GIDEP-Alerts 1
  • MaskPart TLV320AIC22CP%
  • IntroductionDate Apr 10, 2006

Parametry

  • ADC/DAC Resolution (bit) 16
  • Interface Type Serial (I2C, SPI)
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Minimum Operating Supply Voltage (V) 3
  • Minimum Operating Temperature (°C) -40
  • Number of ADC Inputs 4
  • Number of ADCs 2
  • Number of Channels 2ADC / 2DAC
  • Number of DAC Outputs 1
  • Number of DACs 4
  • Operating Supply Voltage (V) 3.3
  • Power Supply Type Analog|Digital
  • Sampling Rate (ksps) 16
  • Signal to Noise Ratio (dB) 76(Min)
  • Supplier Temperature Grade Industrial
  • Total Harmonic Distortion Plus Noise (THD+N) (dB) 70(Min)
  • Type Voiceband
  • Typical Operating Supply Voltage (V) 3.3

Więcej informacji

Do pobrania Download
Main description Voiceband Audio Codec 2ADC / 2DAC Ch 48-Pin LQFP
