TLV320AIC1109PBSG4

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TLV320AIC1109PBSG4_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / TLV320AIC1109PBSG4

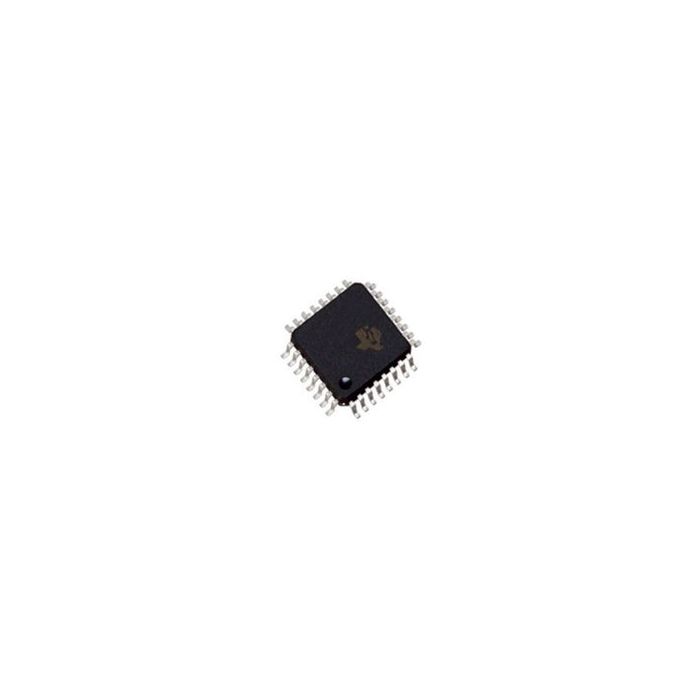

PCM Audio Codec 1ADC / 1DAC Ch 32-Pin TQFP Tray

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • PCNs 39
  • MaskPart TLV320AIC1109PBSG4%
  • IntroductionDate Feb 01, 2005

Parametry

  • ADC/DAC Resolution (bit) 15
  • Interface Type Serial (2-Wire, I2C)
  • Maximum Operating Supply Voltage (V) 3.3
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 702
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 2.7
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of ADC Inputs 2
  • Number of ADCs 1
  • Number of Channels 1ADC / 1DAC
  • Number of DAC Outputs 2
  • Number of DACs 1
  • Operating Supply Voltage (V) N/A
  • Power Supply Type Analog|Digital
  • Sampling Rate (ksps) 8
  • Signal to Noise Ratio (dB) N/A
  • Supplier Temperature Grade Industrial
  • Total Harmonic Distortion Plus Noise (THD+N) (dB) N/A
  • Type PCM
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description PCM Audio Codec 1ADC / 1DAC Ch 32-Pin TQFP Tray
